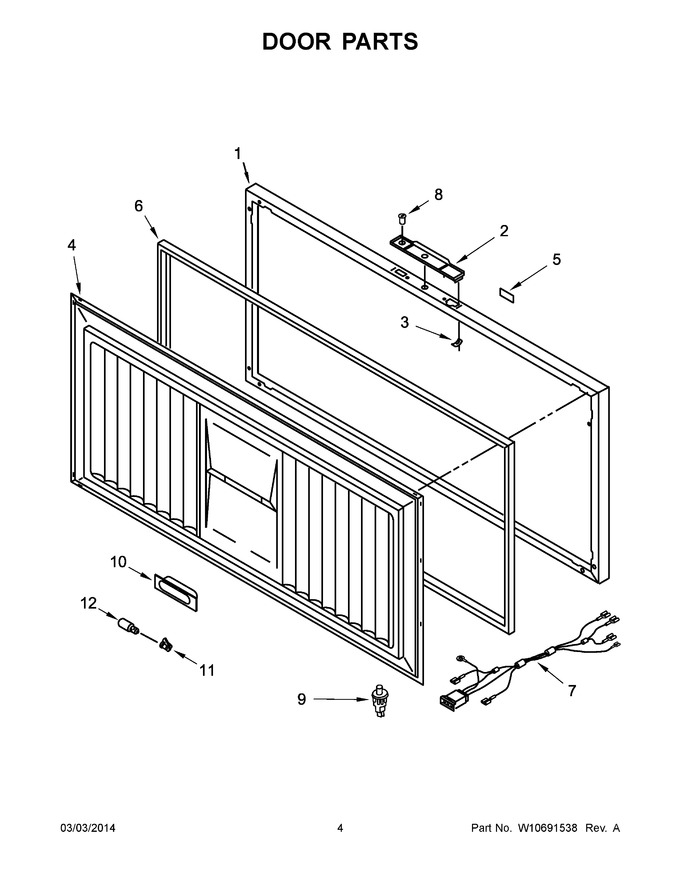

03 - Door Parts
04 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4-35652-404 | Exterior Door Panel |
|
- | |||||
| 2 | 4-35663-149 | Handle |
|
$ 43.72 | |||||
| 3 | 3-24059-024 | Clip, Oblong |
|
$ 12.11 | |||||
| 4 | 4-25770-014 | Interior Door Panel |
|
$ 147.24 | |||||
| 5 | W11178521 | Nameplate (white) (Replaces: W10481434) |
|
Immediately | $ 56.82 | ||||
| 6 | 4-35260-006 | Gasket, Door (white) |
|
Immediately | $ 291.90 | ||||
| 7 | W10620417 | Harness, Cabinet |
|
$ 120.34 | |||||
| 8 | 3-75560-003 | Light, Indicator |
|
$ 105.09 | |||||
| 9 | W10917237 | Switch, Light (Replaces: 3-35645-001) |
|
$ 39.14 | |||||
| 10 | 3-25693-001 | Reflector, Light |
|
$ 15.36 | |||||
| 11 | WPW10191429 | Socket, Light (Replaces: W10191429) |
|
$ 7.54 | |||||
| 12 | W10873798 | Bulb, Light (Replaces: 1-24397-001) |
|
Immediately | $ 12.53 |
