01 - Cover Sheet
02 - Cabinet Parts
03 - Door Parts

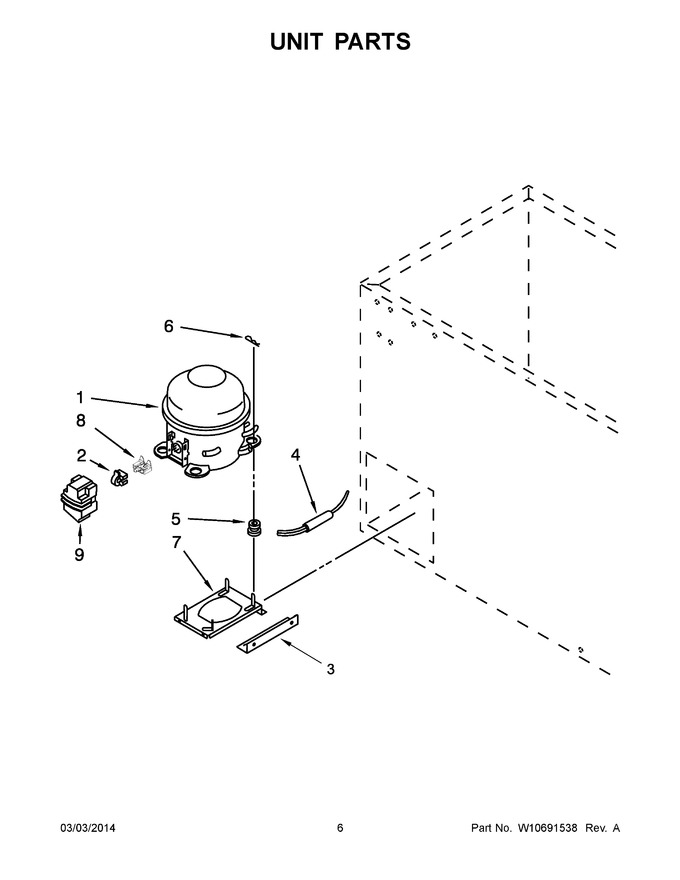

04 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10309994 | Compressor (Replaces: 4-32972-143) |
|
Immediately | $ 551.61 | ||||
| 2 | WPW10466655 | Relay, Start (Replaces: W10466655) |
|
$ 115.81 | |||||
| 3 | 3-81556-001 | Brace |
|
- | |||||
| 4 | W10843121 | Drier (Replaces: W10459086) |
|
Immediately | $ 47.31 | ||||
| 5 | WP2163786 | Grommet, Compressor (Replaces: 13146462) |
|
$ 7.16 | |||||
| 6 | A201435 | Clip, Compressor (Replaces: W10563930) |
|
- | |||||
| 7 | 4-35083-001 | Base, Compressor |
|
- | |||||
| 8 | WP2183456 | Protector, Overload (Replaces: 2-34286-037) |
|
$ 126.16 | |||||
| 9 | WP61002138 | Cover, Terminal (Replaces: W10462677) |
|
$ 7.89 | |||||
| NI | N/P | Following Parts Not Illustrated Refrigerant Charge 6.15 Oz. (r-134a) |
|
- |
