SELECT A DIAGRAM

01 - Cover Sheet

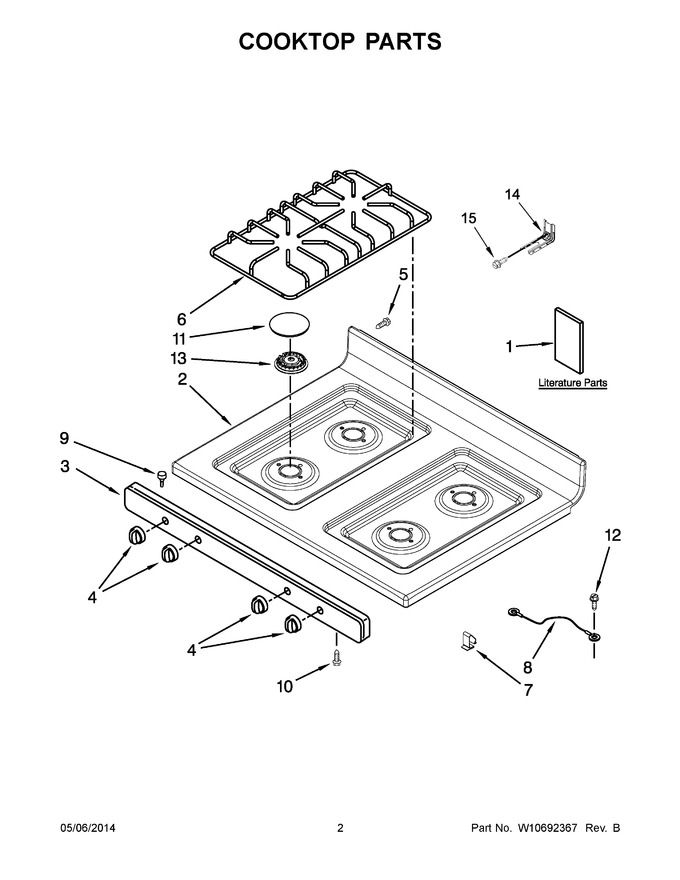

02 - Cooktop Parts


03 - Backguard Parts


04 - Manifold Parts


05 - Chassis Parts


06 - Oven And Broiler Parts


07 - Door Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10620419		Instructions, Installation		Appelez-nous	-
1	W10620409		Guide, Use And Care		Appelez-nous	-
1	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
1	W10142327		Tech Sheet		Appelez-nous	-
2	WPW10535684		Cooktop (white)   (Replaces: W10535684)				$ 286.53
3	W10620545		Panel, Manifold (white)		Appelez-nous	-
4	WPW10614597		Knob, Burner (white)   (Replaces: W10614597)				$ 20.98
5	WP98007225		Screw   (Replaces: 98007225)				$ 6.26
6	WPW10578251		Grate, Burner (black)   (Replaces: W10578251)				$ 42.40
7	W11229684		Clip, Cooktop   (Replaces: 98004722)				$ 10.67
8	3184020		Wire, Ground   (Replaces: 98014544)				$ 74.50
9	W10831827		Bumper, Cooktop   (Replaces: 98013389)		Appelez-nous	-
10	W11233072		Screw   (Replaces: 98005000)			Immediately	$ 12.62
11	WP98017461		Cap, Burner (black)   (Replaces: 98017461)				$ 60.75
12	W10850756		Screw, Ground   (Replaces: 8534079)				$ 6.98
13	WPW10636224		Burner, Standard   (Replaces: W10636224)			Immediately	$ 59.23
14	WPW10613666		Bracket, Anti-tip   (Replaces: W10613666)				$ 15.39
15	WP7101P485-60		Screw, Anti-tip   (Replaces: 7101P485-60)				$ 26.33

    View Diagram in Separate Window       Print Part List
