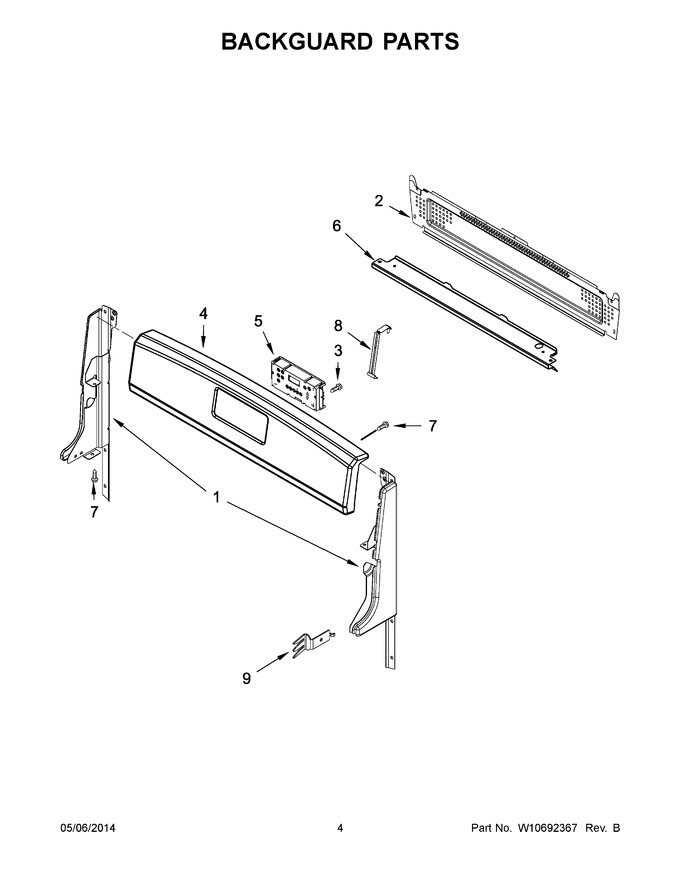

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10873441 | Endcap (left Hand) (white) (Replaces: W10662110) |
|
- | |||||
| 1 | W10873438 | Endcap (right Hand) (white) (Replaces: W10661915) |
|
- | |||||
| 2 | W10588614 | Backguard, Rear |
|
- | |||||
| 3 | W10837731 | Screw (Replaces: 98006633) |
|
$ 7.07 | |||||
| 4 | W10535806 | Panel, Control (white) |
|
- | |||||
| 5 | WPW10556708 | Control, Electronic (white) (Replaces: W10556707) |
|
$ 226.01 | |||||
| 6 | W10535746 | Bracket, Console Mount |
|
- | |||||
| 7 | W11233072 | Screw (Replaces: 98005000) |
|
Immediately | $ 12.62 | ||||
| 8 | W11230932 | Bracket, Control (Replaces: W10324410) |
|
Immediately | $ 72.69 | ||||
| 9 | W10535815 | Bracket, Rear |
|
- |
