01 - Cover Sheet
02 - Cooktop Parts
03 - Backguard Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Oven And Broiler Parts

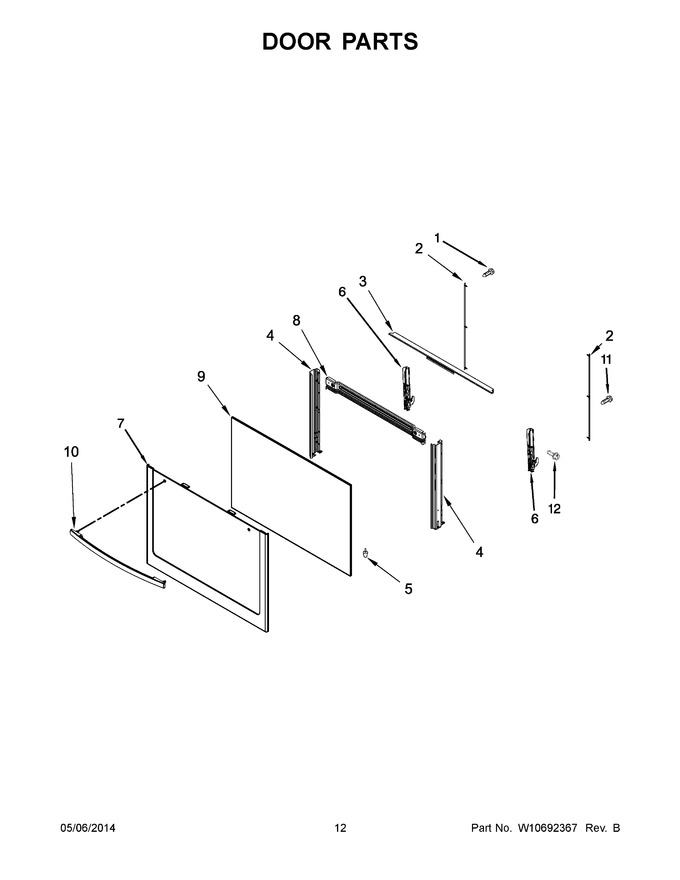

07 - Door Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3400832 | Screw (black) (Replaces: 98006726) |
|
Immediately | $ 6.98 | ||||
| 2 | W11104748 | Seal, Inner Door (Replaces: W10292266) |
|
- | |||||
| 3 | W11105139 | Upper Trim, Oven Door (Replaces: W10544145) |
|
$ 130.82 | |||||
| 4 | W11232008 | Trim, Side (right) (Replaces: W10445013) |
|
- | |||||
| 4 | W11209792 | Trim, Side (left) (Replaces: W10445015) |
|
- | |||||
| 5 | W10837674 | Screw (Replaces: W10146346) |
|
$ 6.90 | |||||
| 6 | W10857234 | Hinge, Oven Door (white And Black Models) (Replaces: W10535788) |
|
- | |||||
| 7 | WPW10535777 | Panel, Door (white) (Replaces: W10535777) |
|
$ 196.13 | |||||
| 8 | W11389703 | Cross Support (Replaces: W10387343) |
|
- | |||||
| 9 | WPW10535767 | Glass, Inner (Replaces: W10535767) |
|
$ 249.99 | |||||
| 10 | W10535787 | Handle, Oven Door (white) |
|
- | |||||
| 11 | W11206744 | Screw (Replaces: 98008699) |
|
$ 12.20 | |||||
| 12 | W10837731 | Screw (Replaces: 98006633) |
|
$ 7.07 |
