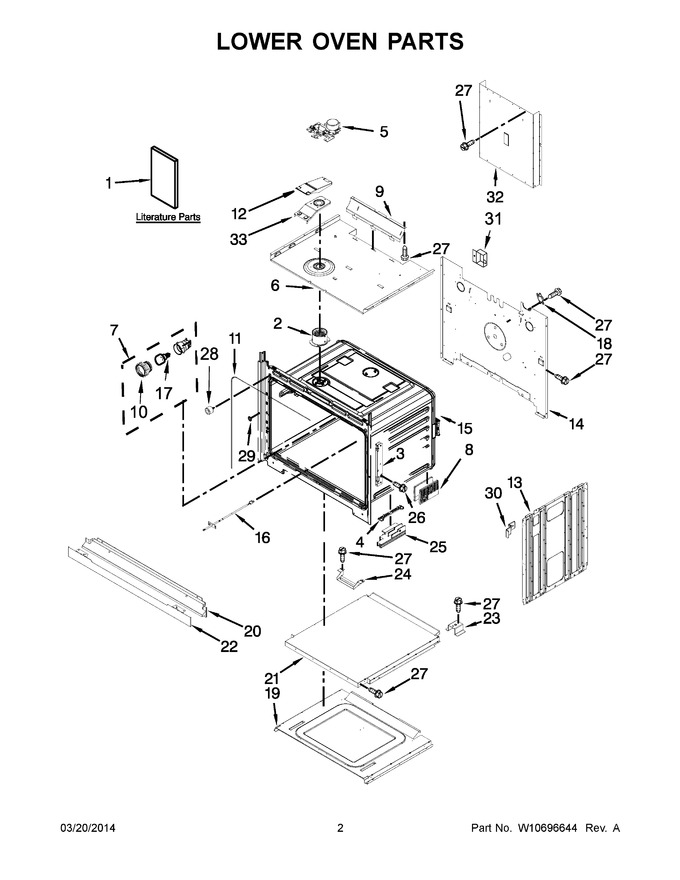

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10354186		Use & Care Guide		Appelez-nous	-
1	W10507057		Tech Sheet		Appelez-nous	-
1	W10351242		Installation Instructions		Appelez-nous	-
2	W11240525		Tube, Vent   (Replaces: W10282946)				$ 21.89
3	W11613828		Receiver, Hinge   (Replaces: W10282975)			Immediately	$ 49.28
4	WPW10318220		Spacer, Base   (Replaces: W10318220)				$ 22.94
5	W10883049		Latch, Motorized   (Replaces: W10314880)			Immediately	$ 275.81
6	W10641573		Top, Chassis		Appelez-nous	-
7	WPW10734063		Assembly, Light   (Replaces: W10260262)				$ 76.33
8	W10821321		Foot, Base   (Replaces: W10318219)				$ 28.72
9	W10904163		Deflector, Blower   (Replaces: W10671661)			Immediately	$ 145.53
10	WPW10412722		Lens, Light   (Replaces: W10412722)			Immediately	$ 16.84
11	W11623080		Gasket   (Replaces: W10282960)			Immediately	$ 65.12
12	W10616810		Cover, Vent Exhaust				$ 59.96
13	W10318190		Side, Chassis				$ 117.20
14	W10282990		Back, Chassis		Appelez-nous	-
15	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
16	WP74008369		Probe, Sensor   (Replaces: 7430P043-60)			Immediately	$ 119.65
17	WPW10412711		Bulb, Light   (Replaces: W10412711)			Immediately	$ 20.35
18	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 100.66
19	W11238787		Base, Chassis   (Replaces: W10282900)				$ 299.70
20	WPW10351279		Assembly, Bottom Vent (stainless)   (Replaces: W10351279)			Immediately	$ 240.26
20	WPW10327373		Assembly, Bottom Vent (black)   (Replaces: W10327373)				$ 277.72
21	WPW10283008		Chassis, Bottom Duct   (Replaces: W10283008)				$ 188.61
22	WPW10351236		Trim, Bottom Vent (black)   (Replaces: W10351236)			Immediately	$ 130.25
22	WPW10327377		Trim, Bottom Vent (stainless)   (Replaces: W10327377)				$ 154.35
23	W10213759		Support, Air Channel		Appelez-nous	-
24	W10351308		Spacer, Chassis Bottom Duct				$ 58.73
25	W10471952		Foot, Front (left)		Appelez-nous	-
25	W10848812		Foot, Front (right)   (Replaces: W10471956)				$ 28.04
26	WPW10254050		Screw   (Replaces: W10254050)				$ 7.30
27	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
28	WPW10351278		Bumper & Screw   (Replaces: W10351278)				$ 9.44
29	W10759525		Grommet, Front Frame   (Replaces: W10283016)				$ 7.04
30	W10347649		Spacers, Front				$ 12.87
31	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
32	W10542857		Duct, Chassis Back				$ 105.99
33	W10616809		Base, Vent Exhaust				$ 27.63
NI	N/P		Following Parts Not .illustrated		Appelez-nous	-
NI	W11688731		Insulation, Wrap   (Replaces: W10520715)				$ 107.03
NI	W11684789		Insulation, Cavity   (Replaces: W10282944)				$ 106.32
