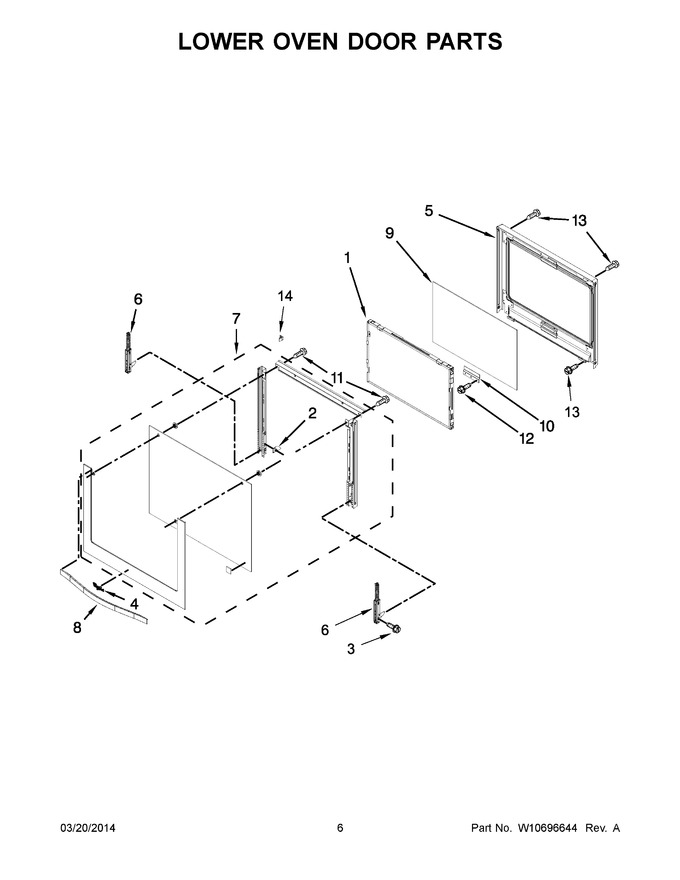

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10347596		Assembly, Window Pack   (Replaces: W10347596)			Immediately	$ 276.90
2	W10812024		Spring, Door Glass Fixation   (Replaces: W10284285)				$ 142.08
3	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 6.98
4	W11178521		Badge (grey)   (Replaces: W10481433)			Immediately	$ 56.82
4	W11178521		Badge (white)   (Replaces: W10481434)			Immediately	$ 56.82
5	WPW10709147		Assembly, Liner   (Replaces: W10320791)				$ 314.31
6	W10825778		Hinge-door   (Replaces: W10419876)			Immediately	$ 93.89
7	W10587549		Assembly, Door Glass (black)		Appelez-nous	-
7	W10587555		Assembly, Door Glass (white Ice)		Appelez-nous	-
7	W10587553		Assembly, Door Glass (black Ice)		Appelez-nous	-
7	W10577911		Assembly, Door Glass (stainless)   (Replaces: W10587556)			Immediately	$ 631.59
7	W10587550		Assembly, Door Glass (white)		Appelez-nous	-
8	W10327380		Handle, Door (white)				$ 178.34
8	W10327379		Handle, Door (stainless)   (Replaces: W10317136)				$ 180.07
8	W10327379		Handle, Door (black)				$ 180.07
9	WPW10618107		Liner, Inner Glass   (Replaces: W10284901)				$ 212.32
10	W10853628		Bracket, Glass   (Replaces: W10284297)				$ 140.45
11	WP488130		Screw   (Replaces: 488130)				$ 6.27
12	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
13	WPY706189		Screw   (Replaces: 7101P653-60)			Immediately	$ 6.47
14	WPW10392683		Bumper, Rail   (Replaces: W10392683)				$ 8.68

    View Diagram in Separate Window       Print Part List
