Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10260252 Element, Broil   (Replaces: W10260252) Special Order $ 119.55

2 W11218798 Rack-oven   (Replaces: W10317430) In-Stock Immediately $ 307.16

3 W10318198 Tray, Hidden Bake Special Order $ 167.85

4 W11347848 Screw   (Replaces: 7101P376-60) Special Order $ 12.20

5 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 7.04

6 W10282957 Crossbar, Hidden Bake Tray Special Order $ 40.69

7 W11545804 Element, Bake   (Replaces: W10546517) In-Stock Immediately $ 92.28

8 W10794022 Fan, Convection   (Replaces: W10588277) In-Stock Immediately $ 193.17

9 WPW10116349 Nut, Acorn   (Replaces: W10116349) Special Order $ 18.67

10 W10758272 Blade, Fan   (Replaces: W10116351) In-Stock Immediately $ 7.12

11 WPW10260248 Ring, Element   (Replaces: W10260248) Special Order $ 265.43

12 W10359278 Baffle, Convection Special Order $ 213.62


    View Diagram in Separate Window     Print Icon   Print Part List

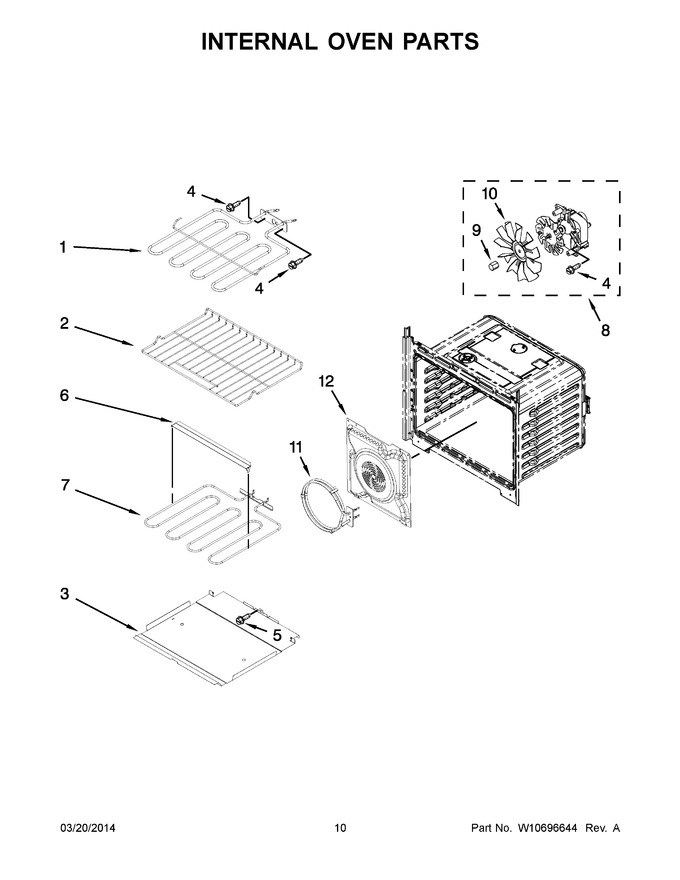

Diagram for WOD93EC0AE02
