01 - Cover Sheet


02 - Drawers


03 - Cabinet


04 - Evaporator


05 - Compressor Compartment


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

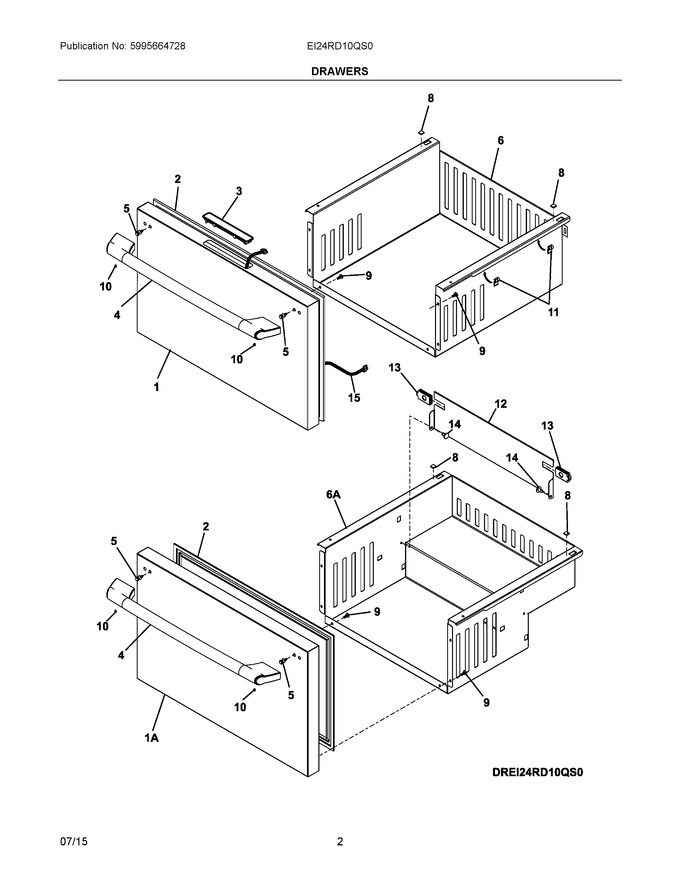

1	5304496713		Drawer Front, Assembly, Stainless, Upper, W/harness		Appelez-nous	-
2	5304496715		Gasket, Black		Appelez-nous	-
3	5304496716		User Interface, Assembly				$ 650.53
4	5304496717		Handle, Door/drawer, Stainless				$ 609.20
5	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
6	5304496718		Drawer Assembly, White, Upper		Appelez-nous	-
8	5304496720		Bumper, Square, Clear		Appelez-nous	-
9	5304496721		Screw, Truss Head, #10-32 X 1/2		Appelez-nous	-
10	5304496722		Screw, Set, #10-32 X 1/4", Cone Point		Appelez-nous	-
11	5304496723		Clip, Locating, Harness		Appelez-nous	-
12	5304496724		Divider, Flip, White		Appelez-nous	-
13	5304496725		Slide, Divider, Plastic		Appelez-nous	-
14	5304496726		Pin, Push		Appelez-nous	-
15	5304503059		Harness, Communication, Intermediate				$ 181.34
1A	5304496714		Drawer Front, Assembly, Stainless, Lower		Appelez-nous	-
6A	5304496719		Drawer Assembly, White, Lower		Appelez-nous	-
