SELECT A DIAGRAM

01 - Cover Sheet


02 - Drawers


03 - Cabinet

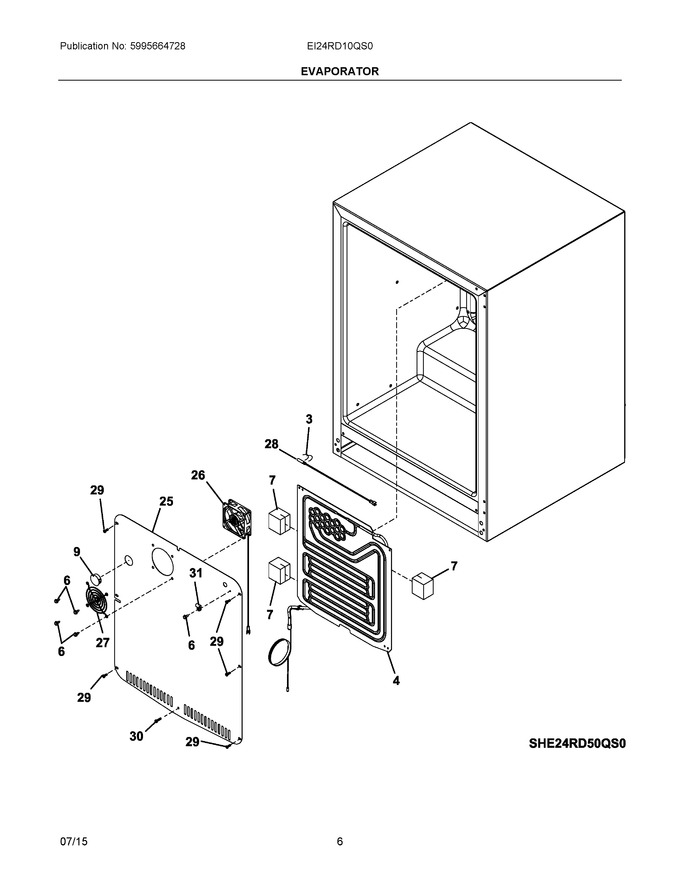

04 - Evaporator


05 - Compressor Compartment


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304496755		Cable Tie		Appelez-nous	-
4	5304496756		Evaporator Assembly, Kit				$ 319.64
6	5304496732		Screw, Hex Washer Head, #10 X 1/2		Appelez-nous	-
7	5304496757		Support, Evaporator, Foam Block		Appelez-nous	-
9	5304496758		Plug, Hole, White		Appelez-nous	-
25	5304496759		Cover, Coil, White		Appelez-nous	-
26	5304496760		Motor, Evaporator Fan		Appelez-nous	-
27	5304496761		Guard, Fan		Appelez-nous	-
28	5304496746		Sensor, Temperature				$ 89.50
29	5304496747		Screw, Kappet, #8-18 X 1/2		Appelez-nous	-
30	5304496762		Screw, Kappet, #8-18 X 1		Appelez-nous	-
31	5304496748		Clamp, "p" Style		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
