SELECT A DIAGRAM

01 - Cover Sheet


02 - Drawers

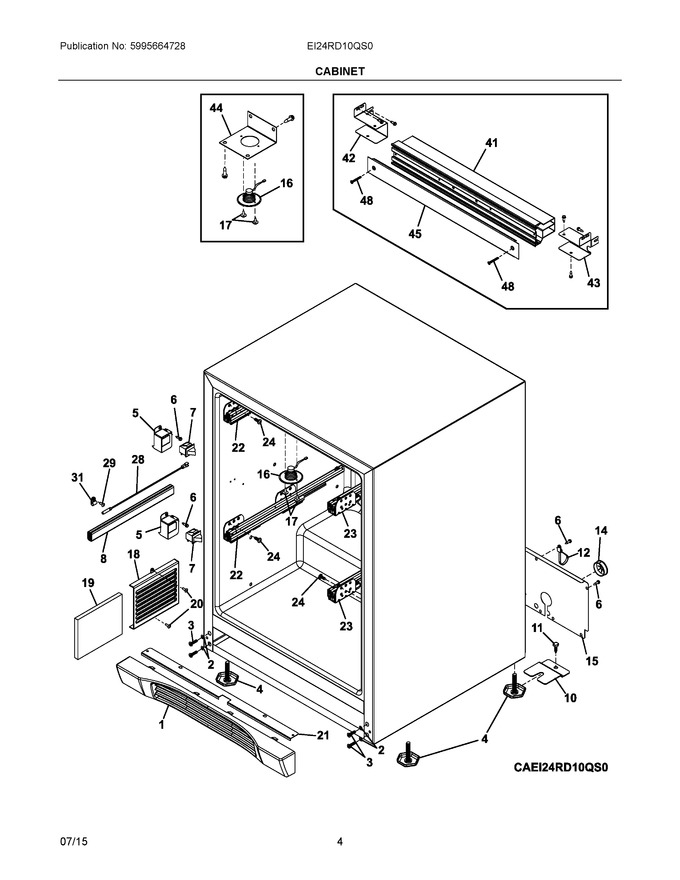

03 - Cabinet


04 - Evaporator


05 - Compressor Compartment


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304496727		Grille		Appelez-nous	-
2	5304496728		Washer, Flat, #10 Countersunk		Appelez-nous	-
3	5304496729		Screw, Ph Cntrsnk Hd, #10-32 X 3/4		Appelez-nous	-
4	5304496730		Leg, Leveler				$ 74.08
5	5304496731		Bracket, Light Switch		Appelez-nous	-
6	5304496732		Screw, Hex Washer Head, #10 X 1/2		Appelez-nous	-
7	5304496733		Switch, Light, Rocker		Appelez-nous	-
8	5304496734		Conduit, High Voltage		Appelez-nous	-
10	5304496735		Bracket, Anti-tip		Appelez-nous	-
11	5304496736		Screw, Lag, Hex Head, 5/16-18 X 1		Appelez-nous	-
12	5304496737		Cable Tie, Mount, (pack Of 10)		Appelez-nous	-
14	5304496738		Grommet, Heyco		Appelez-nous	-
15	5304496739		Cover, Access		Appelez-nous	-
16	5304520842		Light Assembly, Led   (Replaces: 241904202)				$ 215.46
17	5304496740		Screw, Ph Flat Head, #4 X 1/2		Appelez-nous	-
18	241904001		Housing, Air Filter				$ 32.61
19	EAFCBF		Filter, Air   (Replaces: 242047801)			Immediately	$ 27.64
20	5304496741		Screw, Tp Ab Truss Hd, #8 X 5/8		Appelez-nous	-
21	5304496742		Bracket, Grille, Black		Appelez-nous	-
22	5304496743		Slide Assembly, Drawer, Lh		Appelez-nous	-
23	5304496744		Slide Assembly, Drawer, Rh		Appelez-nous	-
24	5304496745		Screw, Pan Head, #14 X 3/4		Appelez-nous	-
28	5304496746		Sensor, Temperature				$ 89.50
29	5304496747		Screw, Kappet, #8-18 X 1/2		Appelez-nous	-
31	5304496748		Clamp, "p" Style		Appelez-nous	-
41	5304496749		Mullion, Foamed		Appelez-nous	-
42	5304496750		Bracket, Mullion Mtg., Lh		Appelez-nous	-
43	5304496751		Bracket, Mullion Mtg., Rh		Appelez-nous	-
44	5304496752		Bracket, Light Mtg., White		Appelez-nous	-
45	5304496753		Cover, Mullion, Black		Appelez-nous	-
48	5304496754		Screw, Csk. Head, #8-18 X 1-1/4		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
