Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/P Liner (not A Serviceable Part) Appelez-nous -
2 W10574645 Control, Temperature Special Order $ 89.17

3 W11233072 Screw   (Replaces: 3-80732-014) In-Stock Immediately $ 12.62

4 1-81154 Plate, Thermostat Special Order $ 12.86

5 W10389334 Tubing, Thermostat Barrier Appelez-nous -
6 WPW10068250 Screw   (Replaces: 1-80283-110) Special Order $ 3.66

7 W11384469 Switch, Light   (Replaces: 2-32164-001) In-Stock Immediately $ 33.51

8 W10873798 Bulb, Light   (Replaces: 1-24397-001) In-Stock Immediately $ 12.53

9 WPW10191429 Socket, Light   (Replaces: W10191429) Special Order $ 7.54

10 W10718106 Knob, Thermostat Appelez-nous -
11 3-25693-001 Reflector, Light Special Order $ 15.36

12 W10469910 Trim, Door Special Order $ 141.19


    View Diagram in Separate Window     Print Icon   Print Part List

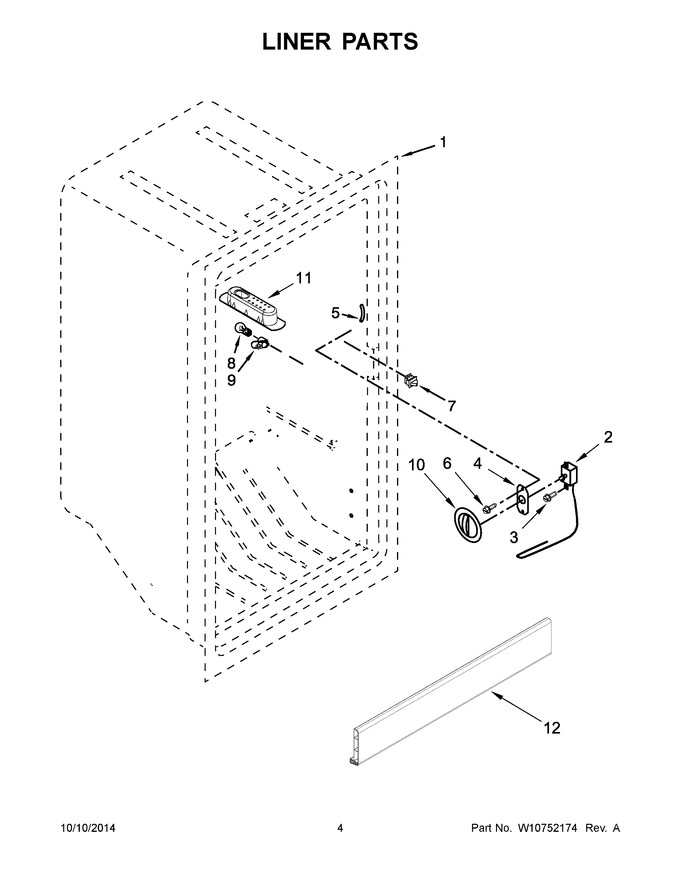

Diagram for AZM12X17DW00
