SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Liner Parts


04 - Door Parts


05 - Unit Parts


06 - Optional Parts (not Included)

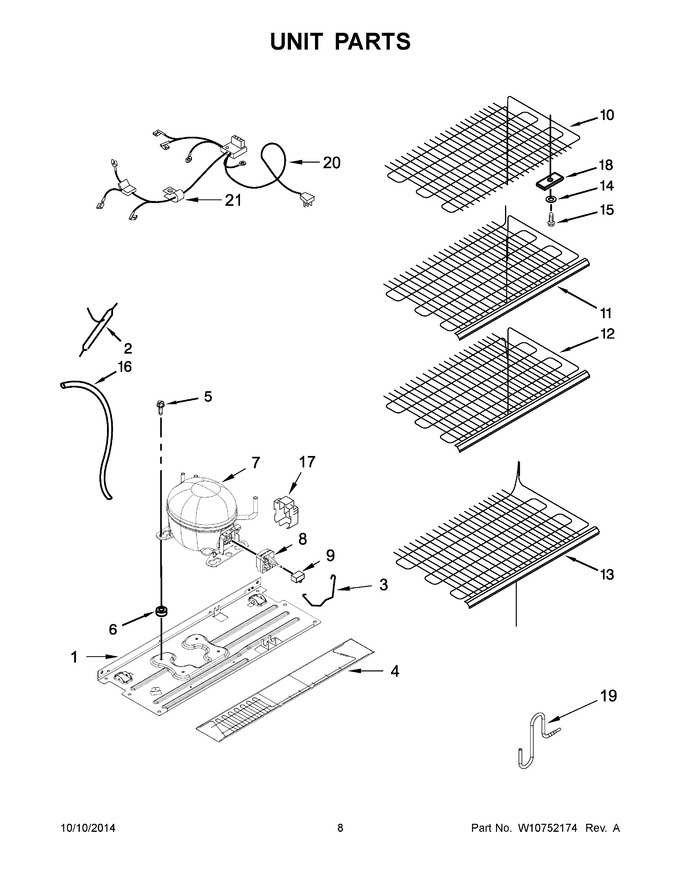

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10574278		Pan, Compressor				$ 120.66
2	WPW10143759		Drier   (Replaces: W10709968)			Immediately	$ 27.70
3	W10574470		Bale Strap				$ 16.78
4	W10682881		Condenser		Appelez-nous	-
5	W11661574		Screw   (Replaces: 489473)				$ 12.25
6	W11661108		Grommet   (Replaces: 2183042)				$ 13.04
7	W10233960		Compressor   (Replaces: W10634057)			Immediately	$ 462.29
8	WPW10448874		Device, Start   (Replaces: W10448874)			Immediately	$ 122.47
9	WPW10350564		Capacitor   (Replaces: W10350564)			Immediately	$ 89.54
10	W10574533		Evaporator, Top   (Replaces: W10574642)		Appelez-nous	-
11	W10574533		Evaporator, First Shelf   (Replaces: W10574641)		Appelez-nous	-
12	W10574533		Evaporator, Second Shelf   (Replaces: W10574640)		Appelez-nous	-
13	W10574533		Evaporator, Bottom   (Replaces: W10574639)		Appelez-nous	-
14	3-80681-133		Washer		Appelez-nous	-
15	WP3-24004-109		Screw, Evaporator Mounting   (Replaces: 3-24004-109)				$ 7.25
16	W10661497		Heat Exchanger				$ 131.83
17	W10574450		Shield, Capacitor				$ 29.33
18	1-80308-101		Clamp				$ 67.64
19	W10574659		Discharge Tube		Appelez-nous	-
20	W10622169		Wire Harness (includes Power Cord)				$ 95.45
21	549193		Clamp, Power Cord				$ 12.05
NI	N/P		Refrigerant Charge 4.6 Oz. (r-134a)		Appelez-nous	-
