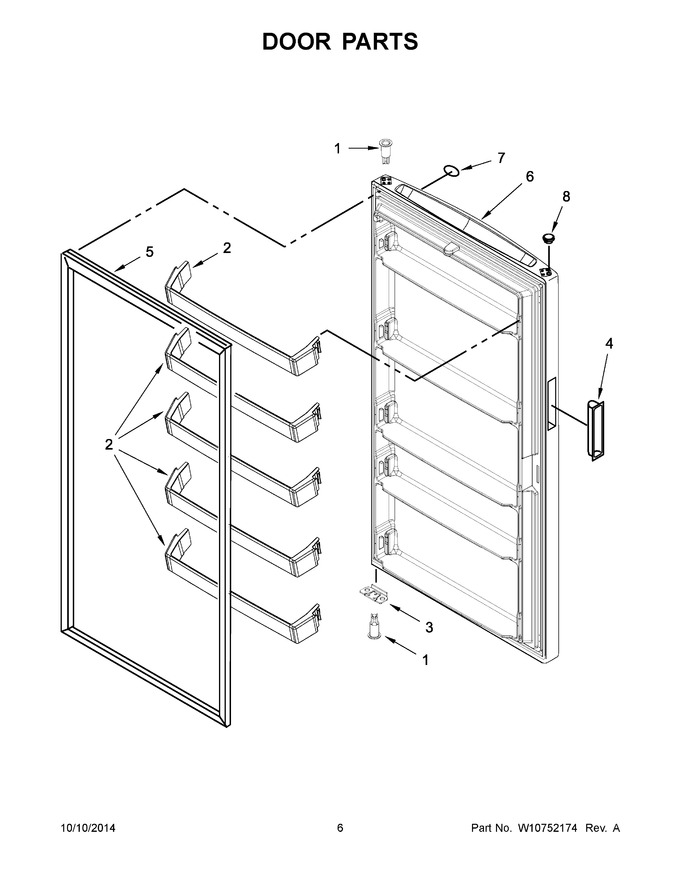

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.47 | |||||
| 2 | 65450-001 | Rail, Door Shelf |
|
- | |||||
| 3 | W10628869 | Bracket, Door Stop |
|
$ 22.56 | |||||
| 4 | W10352523 | Handle, Door (white) |
|
$ 21.60 | |||||
| 5 | W10856583 | Gasket, Door (white) (Replaces: W10574474) |
|
Immediately | $ 274.68 | ||||
| 6 | W10746783 | Door Assembly (white) (Replaces: W10574709) |
|
$ 767.76 | |||||
| 7 | W11428492 | Badge, Amana (Replaces: W10200425) |
|
$ 71.63 | |||||
| 8 | WP2212648 | Plug, Hole (white) (Replaces: 2212648) |
|
$ 7.02 |
