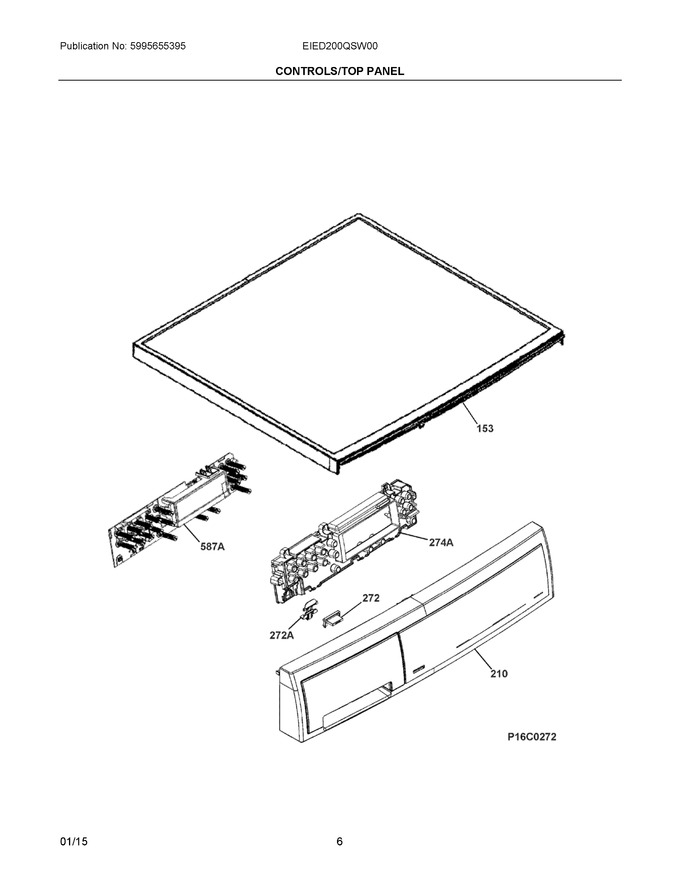

04 - Controls/top Panel
05 - Motor
06 - Burner
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 153 | 136613091 | Panel, Top Asmy, 597x501.6mm, White |
|
$ 103.69 | |||||
| 210 | 136815041 | Panel, Control, Handle |
|
$ 287.05 | |||||
| 272 | 136658511 | Button, Rect On/off, Silver |
|
$ 88.93 | |||||
| 272A | 136658601 | Spring, Button, On/off |
|
$ 36.87 | |||||
| 274A | 136659600 | Diffuser, Support, Luminous Diode |
|
$ 101.12 | |||||
| 587A | 136007545 | Controls, Ui Board Asmy |
|
$ 344.24 |
