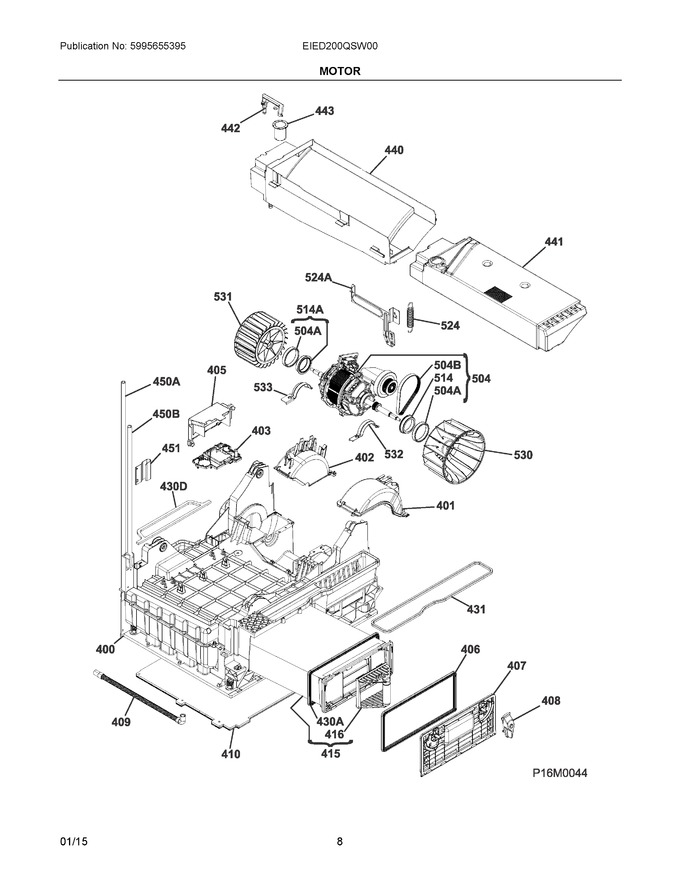

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
400	136600030		Basement, Condenser P10		Appelez-nous	-
401	136604102		Cover, Fan Wheel, Front				$ 141.49
402	136604205		Cover, Fan Wheel, Back				$ 111.13
403	136604910		Support, Pump				$ 92.19
405	136606504		Cover, Pump, Float Switch				$ 100.36
406	136607300		Gasket, Door, Basement				$ 71.59
407	136609110		Door, Condenser, Basement				$ 72.72
408	136609214		Knob, Door Lock, Basement				$ 106.32
409	136605700		Pipe, Discharge, L=331.5mm				$ 56.28
410	809221801		Cover, Basement		Appelez-nous	-
415	136701301		Condenser, Steam Asmy				$ 238.43
416	136607400		Handle, Steam Condenser		Appelez-nous	-
431	136605600		Sealing, Air Duct, Basement				$ 54.58
440	136601700		Support, Tank				$ 153.26
441	136601802		Tank, Upper				$ 144.87
442	136602804		Connector, Water Tank Ul   (Replaces: 136602803)				$ 17.01
443	136606900		Bushing, Tank				$ 51.19
451	136603500		Tube, Holder		Appelez-nous	-
504	808643202		Motor, Reduction Gear, 190v, 240hz, 220w			Immediately	$ 533.80
514	405549614		Bushing, Main Motor, White   (Replaces: 125106100)				$ 18.08
524	125694900		Tension Spring, Mtr, Env06 Crm				$ 53.50
530	136609300		Wheel, Fan, Front, ?141mm   (Replaces: 136609301)				$ 60.15
531	136604401		Fan, Wheel, Cooling, Back			Immediately	$ 233.89
532	A00551101		Fixing Bracket, Main Motor Frnt				$ 49.10
533	A00551201		Fixing Bracket, Main Motor Frnt				$ 49.89
430A	125106700		Gasket, Heat Exchanger, Nex4 Cond, Front				$ 85.13
430D	136606800		Gasket, Heater, Basement				$ 57.88
450A	136605411		Hose, Overflow, 1040mm				$ 116.24
450B	136605501		Hose, Pump, Tanl, L=1130		Appelez-nous	-
504A	125106000		Rubber Damper, Main Mtr, ?49, 7		Appelez-nous	-
504B	808699801		Belt, Drive, L=267.5mm, Reduction Gear				$ 139.63
514A	405549614		Bushing, Kit, Nx4c   (Replaces: 5027823800)				$ 18.08
524A	A00299401		Support, Tension Spring				$ 117.66
NI	A01523501		Harness, Humidity Sensor				$ 132.53
NI	A01522601		Harness, Temp Probe		Appelez-nous	-
NI	5022432900		Nut		Appelez-nous	-
NI	A01522802		Harness, Motor, Main Elec				$ 12.29
NI	5068103300		Washer, Ring, 0.5mm, ?8/?18mm		Appelez-nous	-
NI	A01522901		Harness, Earth, 130+180+420mm				$ 8.51
NI	A01522701		Harness, Heat Element		Appelez-nous	-
NI	A01523001		Harness, Anti-interference		Appelez-nous	-
NI	A01523101		Harness, Heat Element				$ 32.87
NI	A01523201		Harness, Drum Lighting		Appelez-nous	-
NI	A01523301		Harness, Ui Board				$ 139.63
NI	A01523401		Harness, Ui Board				$ 142.13
NI	125122513		Fittings, Drain, Condenser, Kit				$ 87.17
