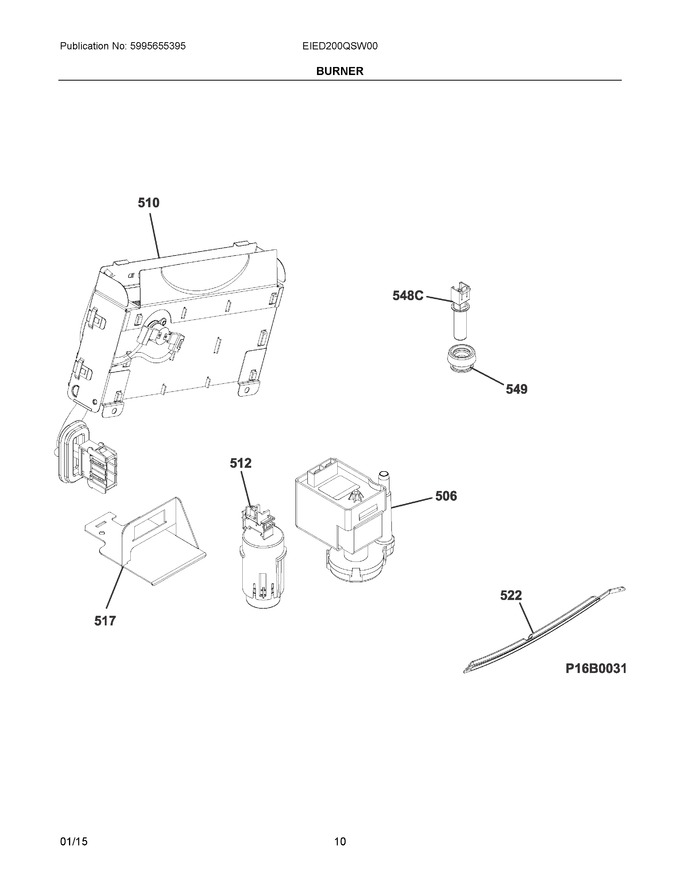

06 - Burner
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 506 | 136402403 | Pump, Condensation, 240v, 60hz, 15w |
|
Immediately | $ 130.98 | ||||
| 510 | 5304537407 | Heater, 240v, 1900+700w (Replaces: 136611032) |
|
Immediately | $ 159.10 | ||||
| 512 | 136614001 | Switch, Micro, Float |
|
$ 150.87 | |||||
| 517 | 136605301 | Support, Wiring Connector |
|
- | |||||
| 522 | 136602910 | Sensor, Humidity |
|
Immediately | $ 57.65 | ||||
| 549 | 991099931 | Sealing, Temp Sensor (Replaces: 124664400) |
|
$ 0.02 | |||||
| 548C | 8581242941111 | Temperature Probe, Ntc (Replaces: 124294111) |
|
Immediately | $ 22.70 |
