SELECT A DIAGRAM
New Model Search:

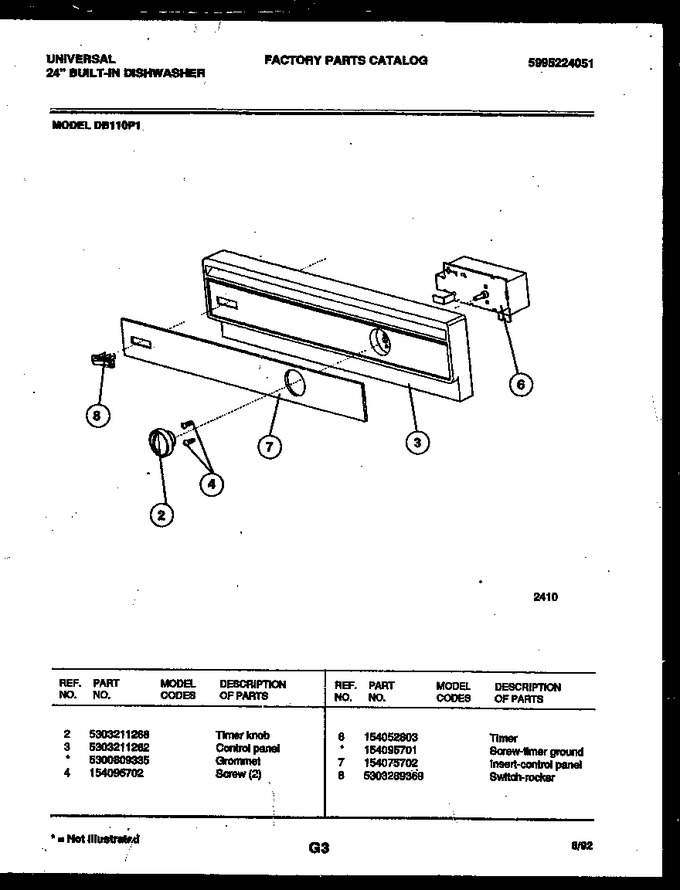

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303211268 | Timer Knob |
|
- | |||||
| 3 | 5303211262 | Control Panel |
|
- | |||||
| 4 | 154095702 | Screw (2) |
|
- | |||||
| 6 | 154052803 | Timer |
|
- | |||||
| 7 | 154075702 | Insert-control Panel |
|
- | |||||
| 8 | 5303289369 | Switch-rocker |
|
- | |||||
| 3A | 5300809335 | Grommet (non-illustrated) |
|
- | |||||
| 6A | 154095701 | Screw-timer Ground (non-illustrated) |
|
$ 10.34 |
