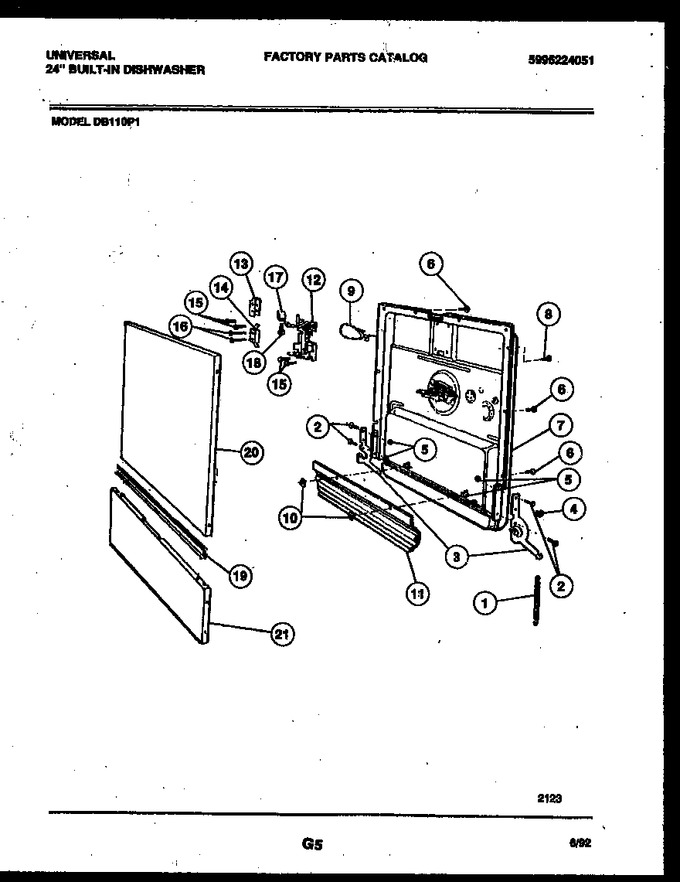

02 - Console And Control Parts
03 - Cam
04 - Door Parts
05 - Tub And Frame Parts
06 - Motor Pump Parts
07 - Power Dry And Motor Parts
08 - Racks And Trays
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300809703 | Door Spring - Includes 4 (2) |
|
$ 39.04 | |||||
| 2 | 154093301 | Screw-10-24 X 5/8`` (4) |
|
Immediately | $ 2.12 | ||||
| 3 | 5303270031 | Arm Assembly (2) |
|
$ 79.75 | |||||
| 4 | 5300805884 | Spring Pad (2) |
|
- | |||||
| 5 | 154079601 | Nut (4) |
|
$ 0.41 | |||||
| 6 | 5300809055 | Screw-8 X 7/16`` (4) |
|
$ 1.21 | |||||
| 7 | 5300809288 | Door Assy |
|
- | |||||
| 8 | 5300808749 | Screw-8 X 5/8``(6) |
|
- | |||||
| 9 | 5300809075 | Wire Tie |
|
- | |||||
| 10 | 154026601 | Speednut |
|
$ 25.67 | |||||
| 11 | 5300809773 | Baffle Seal |
|
- | |||||
| 12 | 5303271018 | Latch Assy |
|
- | |||||
| 13 | 5300809933 | Switch Cover |
|
- | |||||
| 14 | 5300809934 | Switch |
|
$ 129.57 | |||||
| 15 | 218781101 | Screw-8a X 5/8`` (4) (Replaces: 154026501) |
|
$ 15.60 | |||||
| 16 | 5300808618 | Screw-6-32 X 1`` (2) |
|
- | |||||
| 17 | 5303270210 | Latch Knob |
|
- | |||||
| 18 | 5300808715 | Screw, 8, 32 X 5/16`` |
|
- | |||||
| 19 | 154103602 | Trim-door Btm-white |
|
- | |||||
| 20 | 5300807264 | Door Panel-white |
|
- | |||||
| 21 | 5300809117 | Access Panel-white |
|
$ 23.89 | |||||
| 19A | 5300807501 | Screw (3) (non-illustrated) |
|
- |
