SELECT A DIAGRAM

02 - Console And Control Parts


03 - Cam


04 - Door Parts


05 - Tub And Frame Parts


06 - Motor Pump Parts


07 - Power Dry And Motor Parts


08 - Racks And Trays

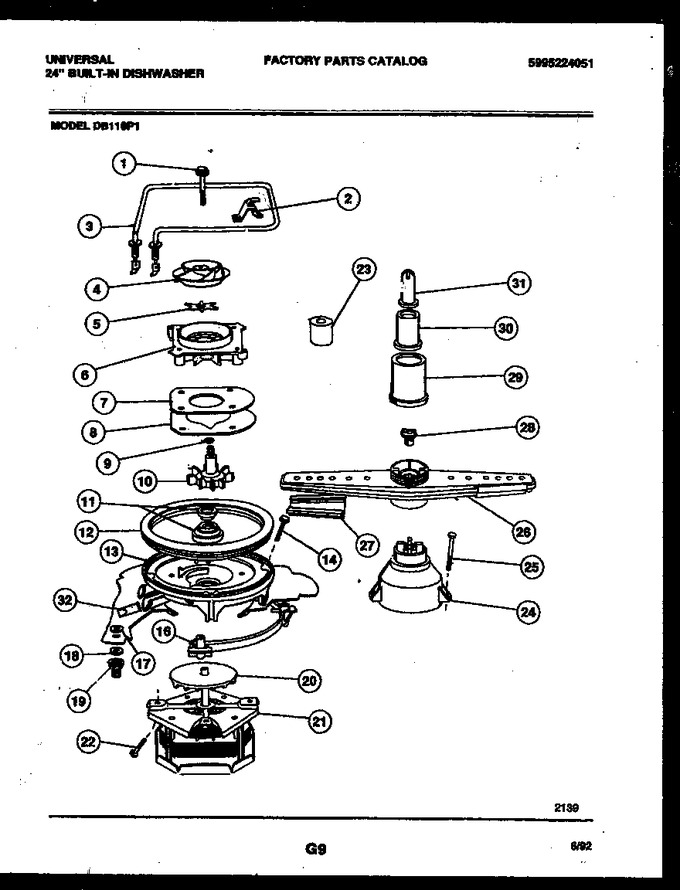

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300806353		Screw-10-32 X 2 1/4``				$ 12.06
2	5300809585		Heater Bracket (2)		Appelez-nous	-
3	5300809584		Heater				$ 222.23
4	5300809918		Upper Impeller				$ 83.45
5	5300809920		Macerator				$ 49.19
6	5300809921		Spacer Plate				$ 12.39
7	5300807884		Pump Plate				$ 48.51
8	5300807709		Pump Gasket				$ 54.26
9	5300806521		O-ring				$ 32.42
10	5300809909		Pump Impeller-includes 4, 5, 9 & 11				$ 71.56
11	5300803903		Water Seal				$ 109.86
12	5300809586		Pump Gasket				$ 85.64
13	5300809772		Pump Housing		Appelez-nous	-
14	5300807268		Screw-10 X 1``(3)				$ 5.93
16	5300809590		Pump Clamp				$ 47.93
17	5300809587		Washer - Heater (2)		Appelez-nous	-
18	154064901		Insulating Washer (2)				$ 8.14
19	154106202		Heater Nut (2)   (Replaces: 5300806834)			Immediately	$ 18.32
20	5300809366		Watershield Assy				$ 2.26
21	5300809984		Motor Assy		Appelez-nous	-
22	5300809022		Screw-10 X 1`` (4)		Appelez-nous	-
23	5300803923		Seal Installation Tool				$ 57.38
24	5300809953		Diffuser Housing Assy		Appelez-nous	-
25	5300807359		Screw 10 X 1 3/4``		Appelez-nous	-
26	5300809954		Spray Arm Assy				$ 145.95
27	5300809938		Spray Arm Shield (2)				$ 37.05
28	5300809018		Spray Arm Bolt		Appelez-nous	-
29	5300808178		Tower Base		Appelez-nous	-
30	5303808179		Tower Section		Appelez-nous	-
31	5303808180		Tower Tip		Appelez-nous	-
32	5300809937		Check Valve				$ 74.71
2A	5300810094		Screw-10 X 5/8`` (2) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
