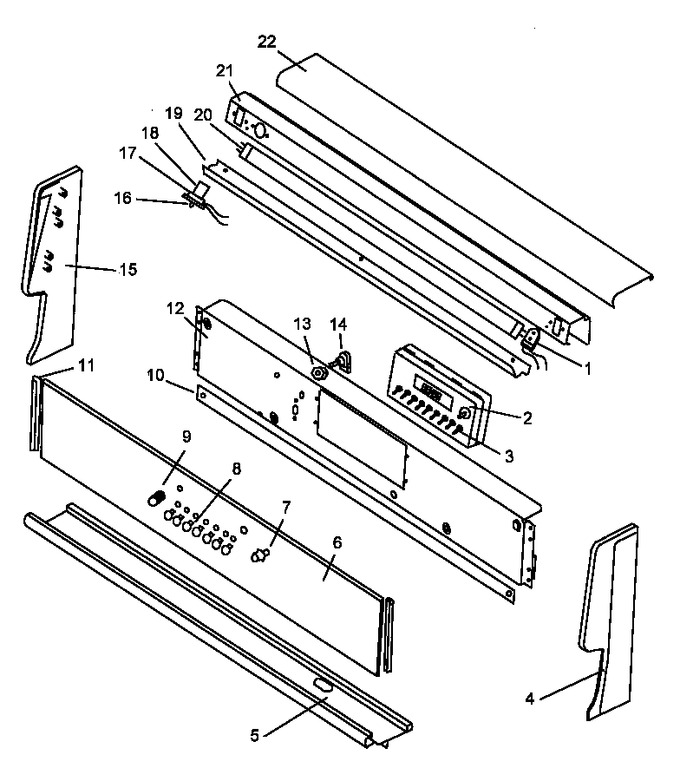

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0304559 | Lamp Holder-floures |
|
- | |||||
| 2 | 0309440 | Erc 3, Gas, Auto Latch |
|
- | |||||
| 3 | 0309888 | Pin, Actuator |
|
- | |||||
| 4 | 306469B | End Cap, Bkgd Lh/rh (black) |
|
- | |||||
| 5 | 306130B | Trim, Lower Bkgrd (black) |
|
- | |||||
| 6 | 306831B | Glass, Backguard (blk) |
|
- | |||||
| 7 | 308385B | Knob, Clock (black) |
|
- | |||||
| 8 | 309887B | Button, Erc (blk) |
|
- | |||||
| 9 | 306674B | Knob, Light Switch (blk) |
|
- | |||||
| 10 | 302063B | Srtip, Filler |
|
- | |||||
| 11 | 0305309 | Channel Glass (blk) |
|
- | |||||
| 12 | 0306828 | Bkgrd, Control Panel |
|
- | |||||
| 13 | Y0076175 | Nut |
|
- | |||||
| 14 | Y0306673 | Switch, Oven Light, Rotary |
|
- | |||||
| 15 | 306468B | End Cap, Bkgd Lh/rh (black) |
|
- | |||||
| 16 | Y0305391 | Collar, Starter Socket |
|
- | |||||
| 17 | Y0304560 | Start Holdr-flour.lmp |
|
- | |||||
| 18 | 0071920 | Starter, Flourescent |
|
- | |||||
| 19 | 314934B | Shield, Light (blk) |
|
- | |||||
| 20 | WPY0067945 | Lamp, Flourescent (Replaces: Y0067945) |
|
$ 29.33 | |||||
| 21 | 307211B | Bracket, Light |
|
- | |||||
| 22 | 304955B | Trim, Top Backguard (blk) |
|
- | |||||
| NI | W11245710 | Screw, No.8-18 X 3/8 P Trs Hd Lp (Replaces: Y0041809) |
|
Immediately | $ 12.65 | ||||
| NI | W11245710 | Screw, No.8-18x.406-.344 Waferhd (Replaces: Y0059445) |
|
Immediately | $ 12.65 | ||||
| NI | Y0073657 | Screw, No.6-20 X .375 Pan Hd Ph |
|
- | |||||
| NI | 0306589 | Support, Bkgd (lh) |
|
- | |||||
| NI | 0306590 | Support, Bkgd (rh) |
|
- |
