SELECT A DIAGRAM

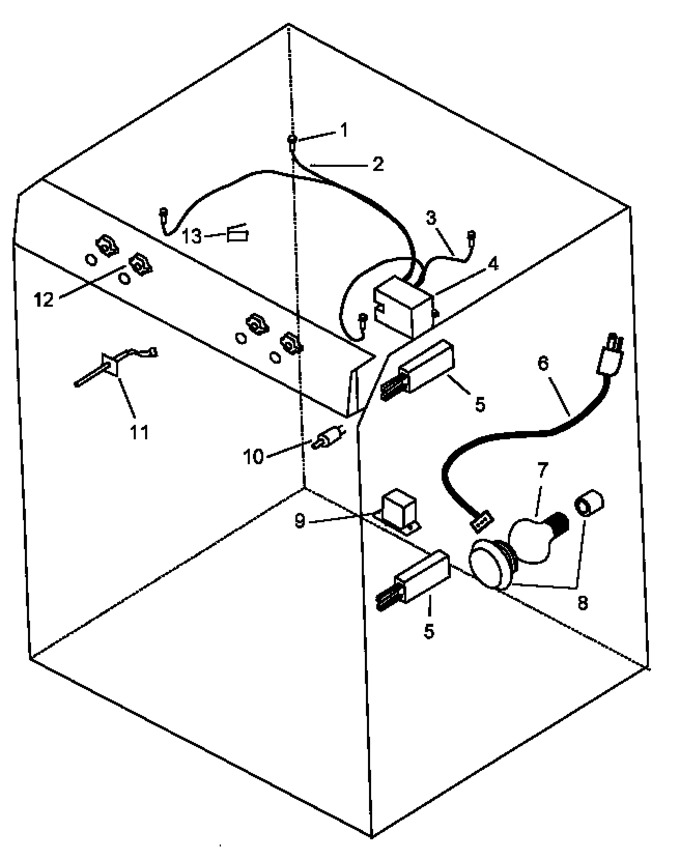

01 - Backguard Assy


02 - Cabinet Assy


03 - Electrical Components


04 - Gas Components


05 - Main Top Assy


06 - Oven Assy


07 - Oven Door Assy


08 - Storage Drawer Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0309358		Assy, Electrode		Appelez-nous	-
2	Y0307393		Harness,ign Wire 31``		Appelez-nous	-
3	Y0307394		Harness,ign Wire 20``		Appelez-nous	-
4	Y0305451		Kit,spark Module(service)		Appelez-nous	-
5	786324		Ignitor   (Replaces: Y0309159)			Immediately	$ 60.68
6	Y0306654		Power Cord		Appelez-nous	-
7	Y0042175		Bulb, Light		Appelez-nous	-
8	WP74011278		Assy, Oven Light   (Replaces: 74011278)				$ 101.56
9	Y0071869		Ballast		Appelez-nous	-
10	Y0305797		Switch, Oven Door		Appelez-nous	-
11	WPY0314907		Sensor, Temperature   (Replaces: Y0314907)				$ 201.45
12	Y0306826		Switch, Ignition		Appelez-nous	-
13	Y0314277		Switch, Door Latch		Appelez-nous	-
NI	Y0072230		Screw No.6-32 X 3/8		Appelez-nous	-
NI	Y0072808		Connector, Wire		Appelez-nous	-
NI	Y0063757		Bracket, Igniter Mounting		Appelez-nous	-
NI	Y0065084		Wire Connector		Appelez-nous	-
NI	Y0303112		Bracket Ignitor Mtg		Appelez-nous	-
NI	M0282005		Nut K				$ 7.07
NI	0063780		Shield, Ignitor		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
