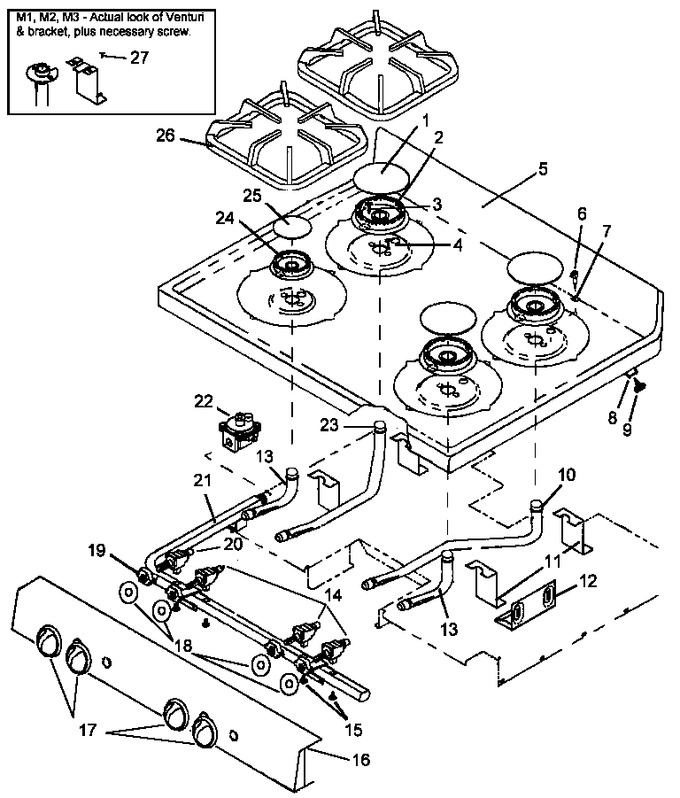

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	314638B		Cap, Burner (large)		Appelez-nous	-
2	Y0315332		Burner, 4`` Die Cast		Appelez-nous	-
3	WP489474		Screw, Ab No.8-18 X 1``   (Replaces: Y0315788)			Immediately	$ 7.17
5	306075B		Maintop-black		Appelez-nous	-
6	Y0309358		Assy, Electrode		Appelez-nous	-
7	Y0307098		Clip, Electrode		Appelez-nous	-
8	Y0062445		Spacer, Nylon (.14``)		Appelez-nous	-
9	Y0092374		Metal Screw 6x3/8 Phil Pan Hd		Appelez-nous	-
10	Y0314968		Tube, Venturi-left Rear		Appelez-nous	-
11	0314970		Brkt, Venturi Mtg.		Appelez-nous	-
12	0304971		Bracket, Spark Module		Appelez-nous	-
13	Y0314966		Tube, Venturi-front		Appelez-nous	-
14	Y0306164		Valve 9k		Appelez-nous	-
15	Y0061441		Surface Valve Bolt& Gasket		Appelez-nous	-
16	314128B		Panel, Manifold (black)		Appelez-nous	-
17	314494B		Knob, Top Burner (blk)		Appelez-nous	-
18	Y0314316		Shield, Switch		Appelez-nous	-
19	Y0306826		Switch, Ignition		Appelez-nous	-
20	Y0306165		Valve 7k		Appelez-nous	-
21	0307175		Pipe Manifold		Appelez-nous	-
22	Y0308866		Regulator, Pressure		Appelez-nous	-
23	0314969		Tube, Venturi-right Rear		Appelez-nous	-
24	Y0315333		Burner, 3`` Die Cast		Appelez-nous	-
25	314637B		Cap, Burner (small)		Appelez-nous	-
26	307398B		Surface Grate		Appelez-nous	-
