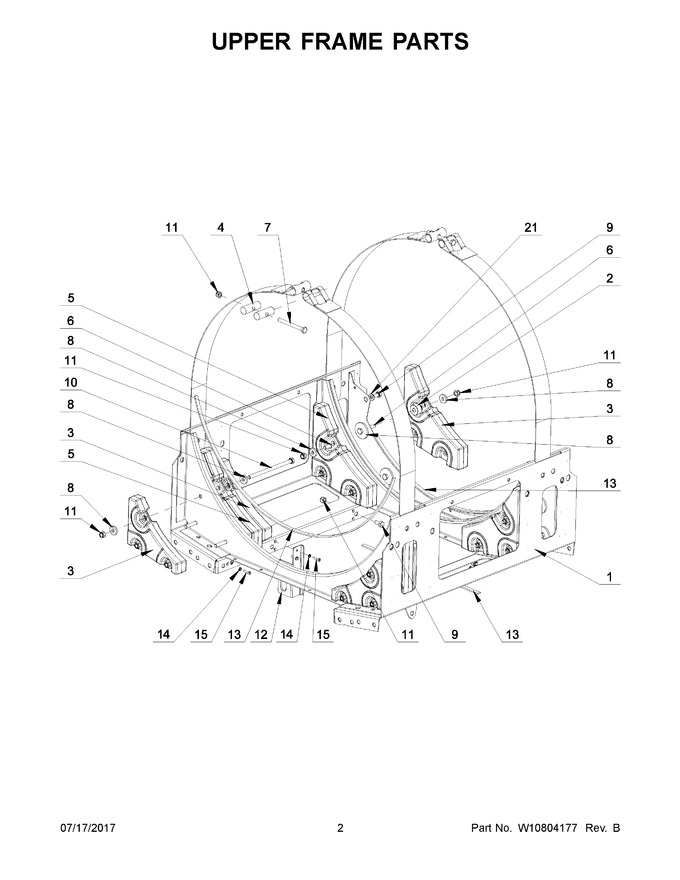

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10711696 | Upper Frame |
|
- | |||||
| 2 | W10757107 | Spacer |
|
- | |||||
| 3 | W10711698 | 4.50kg Weight |
|
- | |||||
| 4 | W10711702 | Cover Strip Pin |
|
- | |||||
| 5 | W10711727 | 12.25kg Weight |
|
- | |||||
| 6 | 23001205 | Bolt M8x45 |
|
$ 442.20 | |||||
| 7 | W10711703 | Bolt M8x100 |
|
- | |||||
| 8 | W10711704 | Washer M8 |
|
- | |||||
| 9 | 23002475 | Bolt M8x20 |
|
$ 13.66 | |||||
| 10 | W10711728 | Bolt M8x150 |
|
- | |||||
| 11 | 23001607 | Nut M8 |
|
- | |||||
| 12 | W10711706 | Detector, Out Of Balance |
|
- | |||||
| 13 | W10711718 | Self-adhesive Foam Seal |
|
- | |||||
| 14 | 23002950 | Washer, Lock M4 |
|
- | |||||
| 15 | 23002398 | Bolt M4x16 |
|
- |
