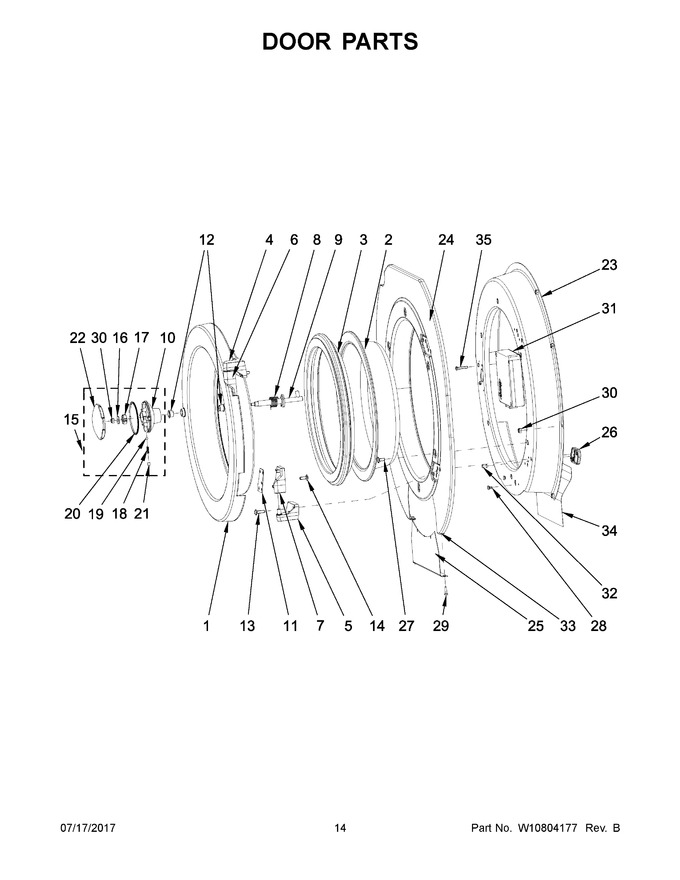

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10712297		Door (grey)		Appelez-nous	-
2	W10712301		Door Glass		Appelez-nous	-
3	W10712305		Door Seal		Appelez-nous	-
4	W10712306		Upper Hinge - Fixed		Appelez-nous	-
5	W10712307		Lower Hinge - Fixed		Appelez-nous	-
6	W10712308		Upper Hinge		Appelez-nous	-
7	W10712309		Lower Hinge		Appelez-nous	-
8	W10712314		Torsion Spring, Handle		Appelez-nous	-
9	W10712315		Lock Shaft, Handle		Appelez-nous	-
10	W10712316		Inner, Handle		Appelez-nous	-
11	W10712317		Washer, Hinge		Appelez-nous	-
12	W10712318		Casing, Lock Shaft		Appelez-nous	-
13	W10712319		Bolt M6x25		Appelez-nous	-
14	W10712320		Bolt M6x16		Appelez-nous	-
15	W10712375		Handle Complete		Appelez-nous	-
16	23003012		Washer M6		Appelez-nous	-
17	W10712323		Locating Segment, Handle		Appelez-nous	-
18	W10712328		Compression Spring, Handle		Appelez-nous	-
19	W10712344		Handle Ball		Appelez-nous	-
20	W10712345		Distinguishing Ring (blue)				$ 18.56
21	W10712347		Bolt M6x6		Appelez-nous	-
22	W10712351		Cover, Handle		Appelez-nous	-
23	W10712358		Door And Lock Holder Complete		Appelez-nous	-
24	W10757826		Front Panel		Appelez-nous	-
25	W10712364		Front Cover Of Heating Element				$ 69.69
26	W10712366		Hinge Support		Appelez-nous	-
27	W10712367		Bolt M6x14		Appelez-nous	-
28	W10712368		Plastic Plug		Appelez-nous	-
29	23002398		Bolt M4x16		Appelez-nous	-
30	23001310		Nut M6		Appelez-nous	-
31	W10712373		Door Lock		Appelez-nous	-
32	23002408		Rivet W/crank (4x12.5)		Appelez-nous	-
33	23004093		Rivet Blind Nut M4		Appelez-nous	-
34	W10712369		Plastic Drip Shield		Appelez-nous	-
35	W10712370		Bolt M5x25		Appelez-nous	-
20A	W10712346		Distinguishing Ring (red)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10712376		Wiring Harness, Door Lock		Appelez-nous	-
