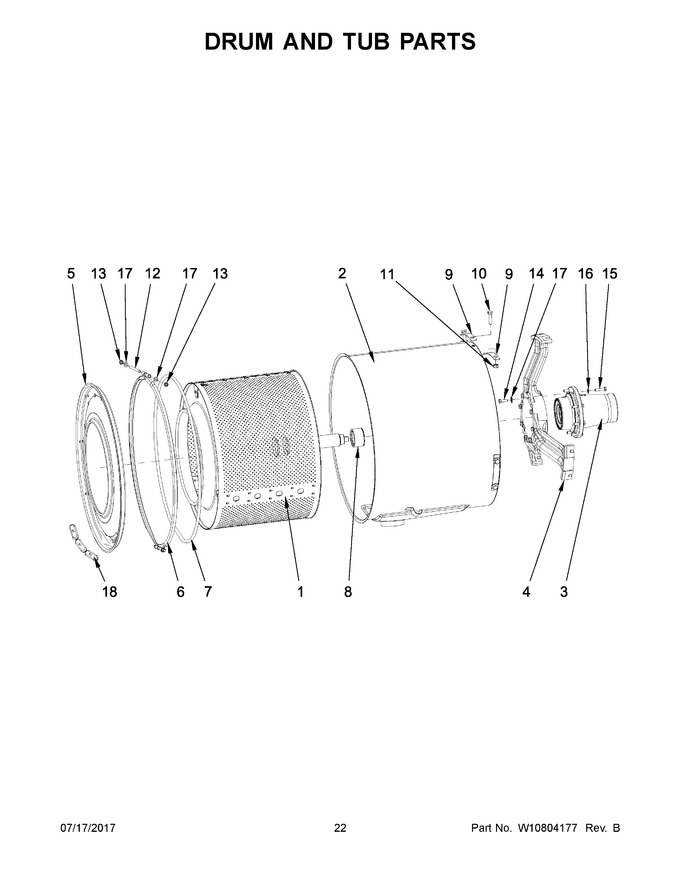

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10713381 | Inner Basket - Complete |
|
- | |||||
| 2 | W10713383 | Outer Tub - Complete |
|
- | |||||
| 3 | W10714074 | Trunnion - Complete |
|
- | |||||
| 4 | W10713401 | Support, Tub |
|
- | |||||
| 5 | W10713409 | Front Tub Panel - Complete |
|
- | |||||
| 6 | W10713412 | Clamp - Complete |
|
- | |||||
| 7 | W10713415 | Seal D10-2550mm |
|
- | |||||
| 8 | W10713946 | Sealing Sleeve |
|
- | |||||
| 9 | W10713949 | Bracket, Curved |
|
- | |||||
| 10 | 23004207 | Bolt M12x50 |
|
- | |||||
| 11 | W10357141 | Nut M12 |
|
- | |||||
| 12 | 23002486 | Bolt M8 |
|
- | |||||
| 13 | 23002487 | Nut M8 |
|
- | |||||
| 14 | 23002940 | Bolt M10x35 (Replaces: 23001202) |
|
- | |||||
| 15 | 23001283 | Bolt M12x35 |
|
- | |||||
| 16 | 23001292 | Washer M13 |
|
- | |||||
| 17 | 23001608 | Washer M8.4 |
|
- | |||||
| 18 | 23001594 | Heating Element Hole Plug |
|
- |
