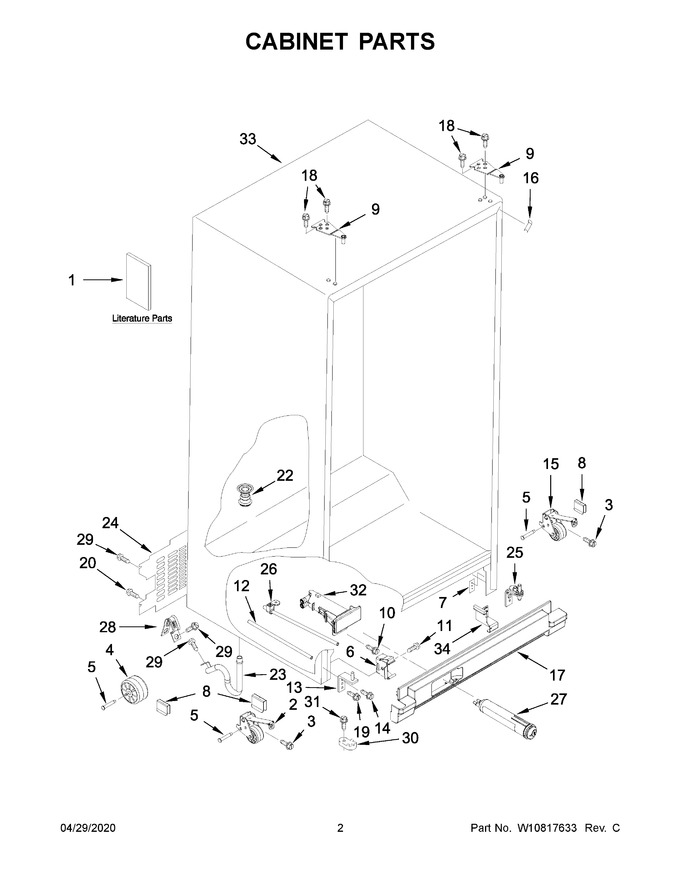

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10436751 | Use & Care Guide |
|
- | |||||
| 2 | WPW10304660 | Roller Assembly (left Hand) (Replaces: W10304660) |
|
Immediately | $ 63.34 | ||||
| 3 | W11544561 | Screw (Replaces: 2152958) |
|
$ 12.65 | |||||
| 4 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 5 | W11594405 | Axle, Roller (Replaces: 2262072) |
|
Immediately | $ 16.39 | ||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 6.95 | ||||
| 7 | WP2304249 | Plate, Screw (Replaces: 2304249) |
|
$ 12.81 | |||||
| 8 | W11594405 | Clip, Roller (Replaces: W11087168) |
|
Immediately | $ 16.39 | ||||
| 9 | W11164088 | Hinge, Top (grey) (Replaces: W10704881) |
|
$ 59.71 | |||||
| 10 | WP489500 | Screw (Replaces: 489500) |
|
$ 7.00 | |||||
| 11 | WPW10141604 | Screw (Replaces: W10141604) |
|
$ 7.59 | |||||
| 12 | WPW10350006 | Tube, Filter Outlet (Replaces: W10350006) |
|
$ 103.99 | |||||
| 13 | W10646418 | Assembly, Bottom Hinge (freezer) (Replaces: W10414753) |
|
Immediately | $ 34.86 | ||||
| 14 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 26.18 | ||||
| 15 | WPW10304659 | Roller Assembly (right Hand) (Replaces: W10304659) |
|
Immediately | $ 61.67 | ||||
| 16 | W11219642 | Filler, Wrapper (grey) (Replaces: W11189126) |
|
Immediately | $ 11.02 | ||||
| 17 | W10350049 | Grille (grey) |
|
$ 60.50 | |||||
| 18 | WPW10308751 | Screw (black) (Replaces: W10308751) |
|
$ 7.57 | |||||
| 19 | W10856122 | Screw (Replaces: 3400103) |
|
$ 6.98 | |||||
| 20 | WP488488 | Screw (Replaces: 489290) |
|
$ 6.91 | |||||
| 21 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.05 | ||||
| 22 | W11566763 | Fitting, Drain (Replaces: 2304888) |
|
Immediately | $ 45.81 | ||||
| 23 | W11512417 | Extension, Drain Fitting (Replaces: W10153550) |
|
$ 31.31 | |||||
| 24 | WPW10506013 | Cover, Unit (Replaces: W10506013) |
|
$ 250.58 | |||||
| 25 | W11049959 | Assembly, Bottom Hinge (refrigerator) (Replaces: W10846222) |
|
$ 68.45 | |||||
| 26 | WPW10350007 | Tube, Filter Inlet (Replaces: W10350007) |
|
$ 112.91 | |||||
| 27 | EDR1RXD1B | Filter, Water (Replaces: W10735398) |
|
Immediately | $ 49.99 | ||||
| 28 | W11234470 | Clamp, Power Cord (Replaces: W11242280) |
|
$ 18.96 | |||||
| 29 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 6.90 | |||||
| 30 | W11778262 | Closer, Door (freezer) (Replaces: W10846218) |
|
$ 9.97 | |||||
| 31 | WP489483 | Screw (Replaces: W10142234) |
|
$ 9.78 | |||||
| 32 | W10862461 | Housing, Water Filter (grey) (Replaces: W10778312) |
|
Immediately | $ 188.61 | ||||
| 33 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 34 | W10355758 | Assembly, Bracket |
|
- | |||||
| 1A | W10714129 | Tech Sheet |
|
- | |||||
| 1B | W11244603 | Energy Guide |
|
- |
