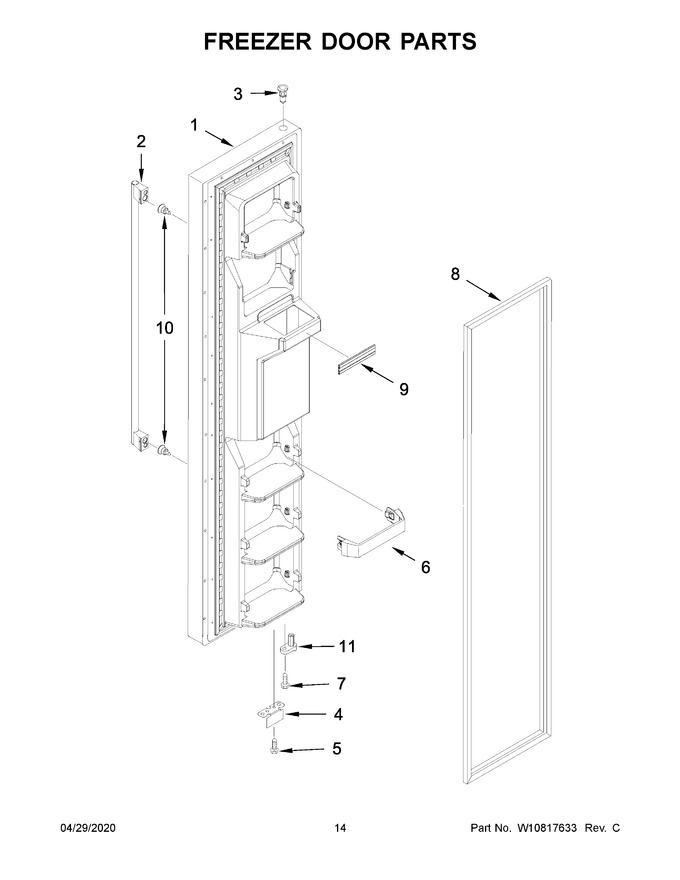

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10436760 | Door, Freezer (includes Door Gasket) (stainless) |
|
- | |||||
| 2 | WPW10202821 | Handle (stainless) (Replaces: W10202821) |
|
$ 261.05 | |||||
| 3 | WP2182181 | Thimble (Replaces: 2182181) |
|
$ 6.98 | |||||
| 4 | 2306940 | Bracket, Door Stop (silver) |
|
$ 87.37 | |||||
| 5 | WP489483 | Screw (Replaces: 489420) |
|
$ 9.78 | |||||
| 6 | WP2309718 | Trivet (Replaces: 2309718) |
|
$ 52.70 | |||||
| 7 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.04 | |||||
| 8 | W10136735 | Gasket, Door (grey) (Replaces: 2327164) |
|
Immediately | $ 229.36 | ||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: W10307494) |
|
Immediately | $ 20.80 | ||||
| 10 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 10.67 | ||||
| 11 | W10846219 | Door Closer, Upper Cam (thimble, Cam) |
|
$ 71.51 |
