Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/P Housing, Dispenser (not Serviced) Appelez-nous -
2 WP8281163 Screw (stainless)   (Replaces: 8281163) In-Stock Immediately $ 9.17

3 WPW10397395 Grille, Overflow (grey)   (Replaces: W10397395) Special Order $ 43.91

4 WPW10397435 Assembly, Water Fitting   (Replaces: W10397435) Special Order $ 113.35

5 W10845113 Assembly, Separator (grey) Appelez-nous -
6 WPW10397956 Ui Assembly Control (grey)   (Replaces: W10397958) Special Order $ 232.69


    View Diagram in Separate Window     Print Icon   Print Part List

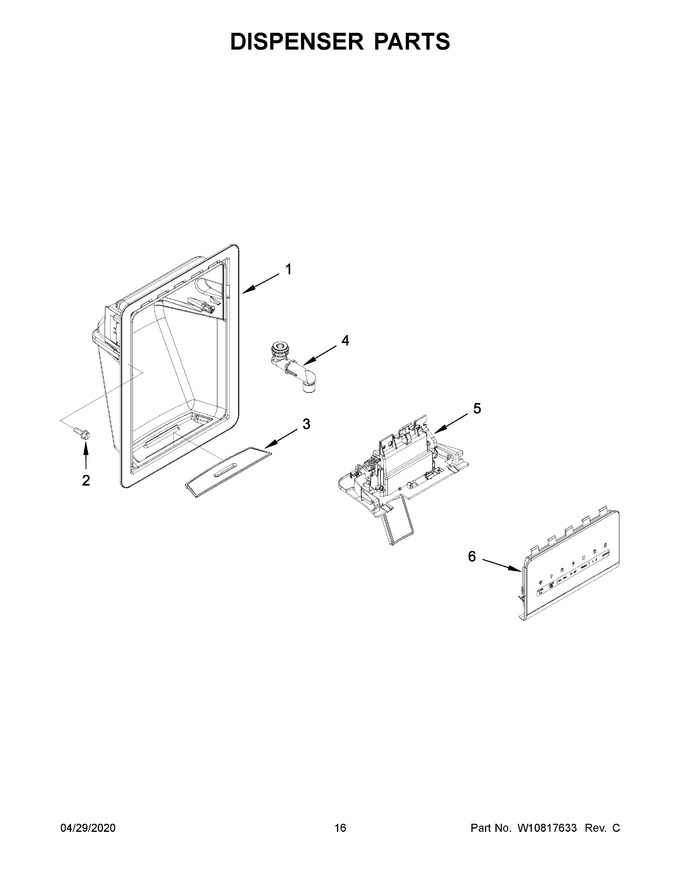

Diagram for ISF25D2XBM01
