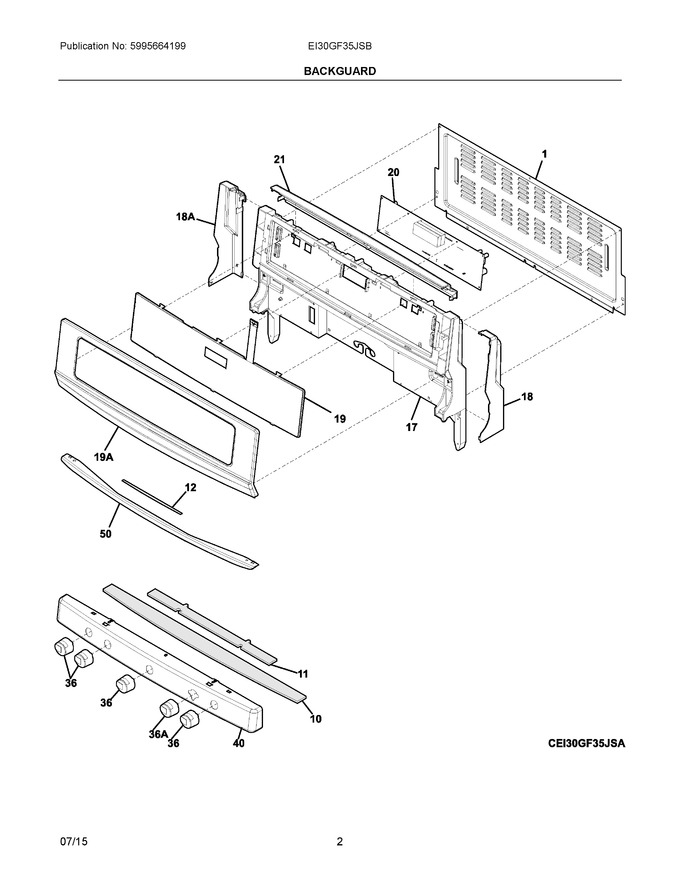

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316380500		Shield, Backguard, Rear Wall		Appelez-nous	-
10	316528700		Insulation, Manifold Panel				$ 89.31
11	316528800		Insulation, Front Frame				$ 60.43
12	316538601		Insualtion, Deflector				$ 13.70
17	316380400		Support, Backguard, Black				$ 292.79
18	316381004		Channel, Support, Black, Rh, Backguard				$ 64.84
19	316380110		Membrane Assembly, Touch, Black, W/mtg Channel		Appelez-nous	-
20	316381802		Clock/timer, Electronic, Es1030				$ 425.66
21	316381401		Cap, Backguard (black) (top)				$ 118.02
36	316535711		Knob, Top Valve (stainless) (4)				$ 186.27
40	316512716		Panel, Manifold (stainless)		Appelez-nous	-
50	316381701		Deflector, Heat Shield, Inner				$ 157.71
18A	316381001		Channel, Support, Black, Lh, Backguard				$ 83.27
19A	316381602		Overlay, Backguard, Stainless				$ 296.36
36A	316535702		Knob, Top Valve (stainless)				$ 160.37
NI	316533900		Screw, Truss Hd, 8-16 X 1.5, (8)				$ 12.02
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
