SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner

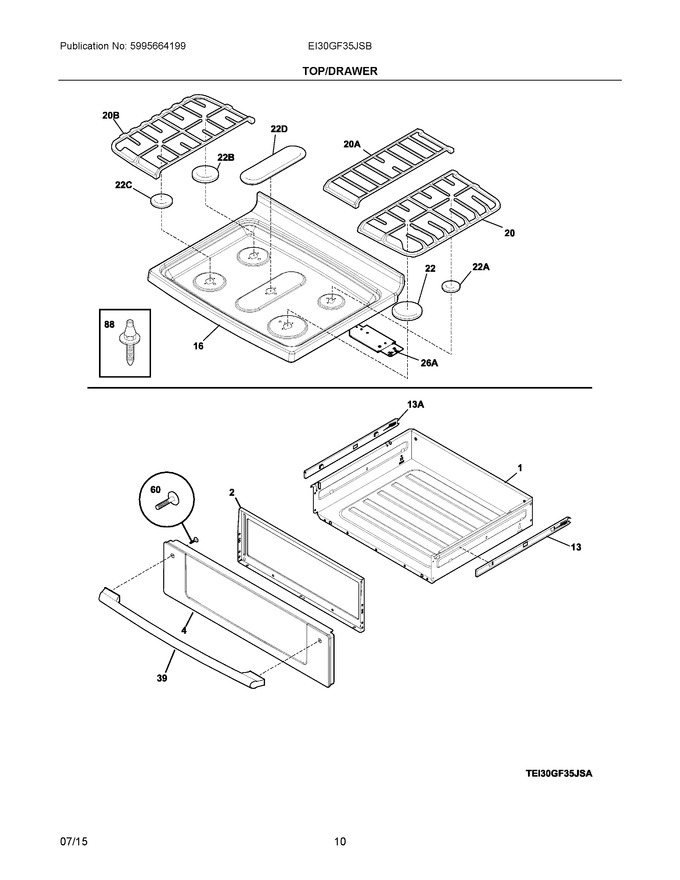

04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408903		Drawer, Warmer				$ 111.30
2	5304527988		Liner, Black, Drawer   (Replaces: 316403203)			Immediately	$ 26.54
4	316382500		Panel Assy, Drawer, Steel/glass, Stainless/black, W/trim				$ 285.34
13	316415000		Glide, Warmer, Inner Rh				$ 58.82
16	316506859		Maintop, Assembly, Black				$ 254.15
20	316537800		Grate, Double Burner, Lh				$ 246.02
22	5304508468		Cap, 17k Burner, Black   (Replaces: 316262104)				$ 49.45
39	316380802		Handle, Door, Stainless				$ 250.86
60	316439503		Screw, Handle Mtg., #10-24 X 1.000, (2)		Appelez-nous	-
88	316099500		Pin, Guide, (2)				$ 6.53
13A	316415001		Glide, Warmer, Inner Lh			Immediately	$ 58.82
20A	316537900		Grate, Burner, Center				$ 227.28
20B	316538000		Grate, Double Burner, Rh				$ 242.06
22A	5304508441		Cap, 5k Burner, Matte, Black   (Replaces: 316261704)			Immediately	$ 35.04
22B	316261904		Cap, 12k Burner, Black				$ 46.36
22C	5304508442		Cap, 9.5k Burner, Matte, Black   (Replaces: 316261804)			Immediately	$ 36.55
22D	316559604		Cap, 9.5k Burner, Black, Oval				$ 72.30
26A	316352700		Bracket, Chassis Support		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46

    View Diagram in Separate Window       Print Part List
