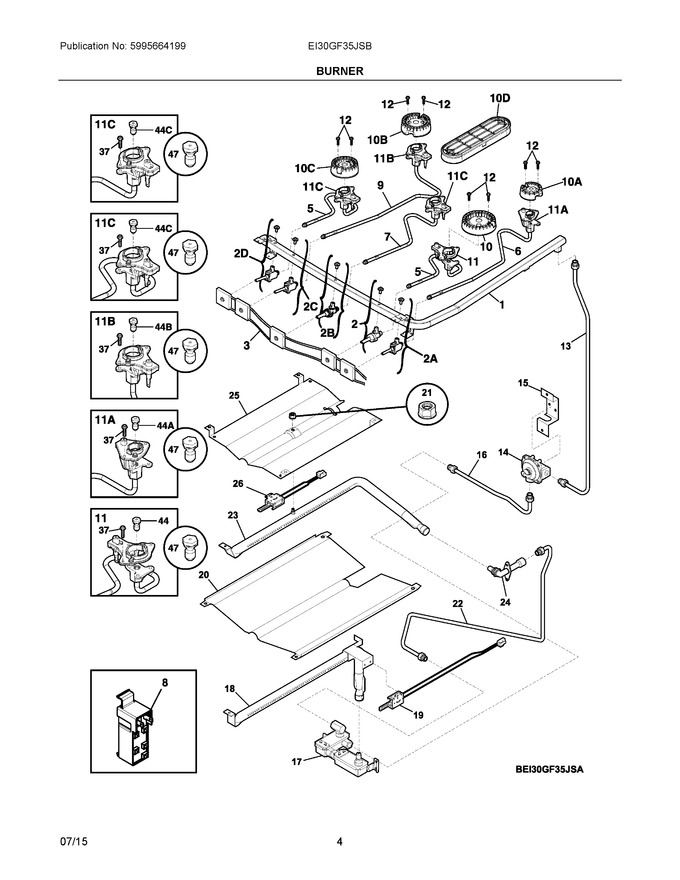

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316505200		Manifold		Appelez-nous	-
2	5303935233		Valve, 17k Burner, W/mtg Screw				$ 64.24
3	316580627		Wiring Harness, W/ignitor Swtch				$ 100.86
5	316509300		Tube, Burner, Rf & Lf, (2)		Appelez-nous	-
6	316509200		Tube, Burner, Rr		Appelez-nous	-
7	316509400		Tube, Burner, Center				$ 117.28
8	5304508269		Module, Spark   (Replaces: 316262404)			Immediately	$ 105.46
9	316526600		Tube, Burner, Lr				$ 107.69
10	316438400		Burner, Sealed, 17k			Immediately	$ 83.42
11	316543200		Ignitor/orifice Assy., Top Burner, 18k, W/holder				$ 13.61
12	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 15.17
13	316545700		Tube, 3/8, Aluminum, Rgltr To Manf, With Fittings				$ 148.58
14	5304521339		Regulator, Pressure   (Replaces: 316091706)			Immediately	$ 105.42
15	316091600		Bracket, Regulator				$ 73.56
16	5304507348		Tube-valve To Rgltr, 3/8   (Replaces: 316431000)			Immediately	$ 47.03
17	316031501		Valve, Safety			Immediately	$ 296.26
18	316404400		Burner, Oven				$ 109.10
19	316489403		Ignitor, Bake Burner			Immediately	$ 142.57
20	5304519024		Baffle, Oven Burner   (Replaces: 316401401)			Immediately	$ 80.39
21	154079601		Nut, Hex Head Sems   (Replaces: 5303013272)				$ 0.41
22	5304507768		Tube-valve To Mixer   (Replaces: 316537100)				$ 50.06
23	316404302		Burner, Broiler				$ 104.18
24	5304516894		Elbow, Mixer   (Replaces: 316409700)				$ 87.21
25	5304497666		Baffle, Broiler				$ 94.04
26	5304506545		Ignitor, Broil Burner   (Replaces: 316489404)			Immediately	$ 94.21
37	316240600		Screw, Assy Mtg, (8), Ignitor/orifice			Immediately	$ 12.13
44	316527510		Orifice, Top Burner, 18k		Appelez-nous	-
47	GRLP4		Lp Conversion Kit   (Replaces: 316542416)			Immediately	$ 56.70
10A	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
10B	316438000		Burner, Sealed, 12k				$ 67.81
10C	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
10D	316559300		Burner, Sealed, 9.5k, Oval				$ 177.19
11A	316540800		Ignitor/orifice Assy., Top Burner, 5k, W/holder				$ 11.20
11B	316540702		Ignitor/orifice Assy., Top Burner, 12k, W/holder			Immediately	$ 12.85
11C	316540700		Ignitor/orifice Assy., Top Burner, 9.5k, W/holder				$ 11.15
2A	5303935308		Valve, 5k Top Burner, W/mtg Screw				$ 70.88
2B	5303935309		Valve, Top Burner, 9.5k/tortilla				$ 82.22
2C	5303935306		Valve, Top Burner, Blue Stem				$ 80.80
2D	5303935305		Valve, 9.5k Burner, W/mtg Screw			Immediately	$ 77.26
44A	316527504		Orifice, Burner, 5k				$ 22.68
44B	316527502		Orifice, Burner, 12k				$ 22.68
44C	316527500		Orifice, Burner, 9.5k				$ 21.40
NI	5304494425		Harness, Ignitor   (Replaces: 316580602)				$ 86.45
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316434900		Shield, Valve, Bridge Burner				$ 11.55
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021104		Screw, Hex, 8-18 X 3/8, Nick, (3), Regulator Brkt				$ 7.79
NIA	316498100		Shield, Wire, Safety Valve				$ 15.17
NIA	316401500		Cover, Broil Ignitor				$ 12.89
