01 - Cover Sheet

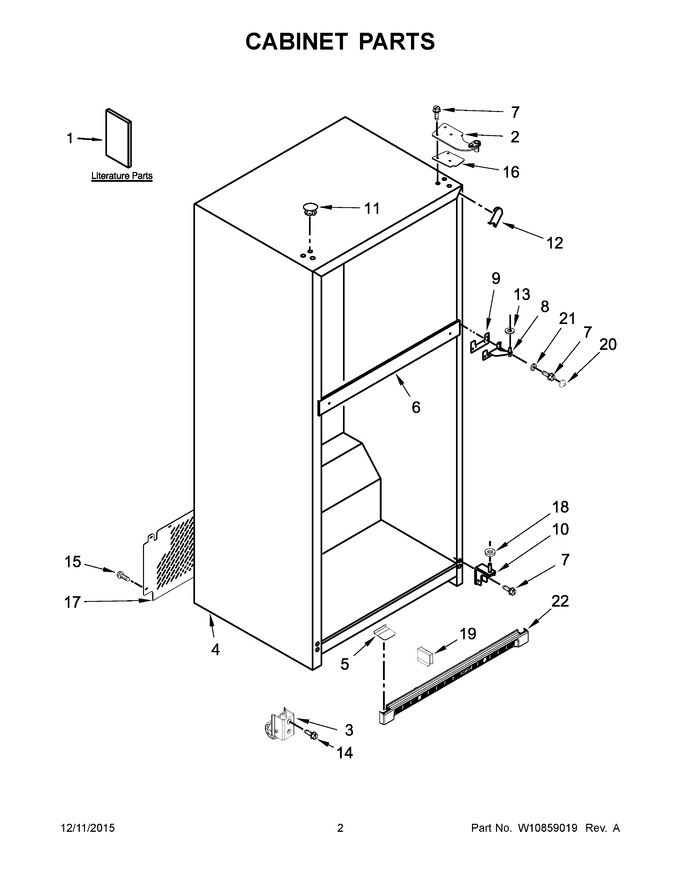

02 - Cabinet Parts
03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10804649 | Service & Wiring Sheet |
|
- | |||||
| 2 | WPW10300065 | Assembly, Top Right Hinge (Replaces: W10300065) |
|
$ 11.95 | |||||
| 3 | WPW10359256 | Roller Assembly (left Hand) (Replaces: W10359256) |
|
Immediately | $ 46.65 | ||||
| 4 | N/P | Cabinet (not Serviced) |
|
- | |||||
| 5 | WPW10339257 | Cover, Toe Grille (white) (Replaces: W10339257) |
|
$ 73.22 | |||||
| 6 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 7 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 8 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 78.88 | ||||
| 9 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 9.59 | |||||
| 10 | WP2254473 | Hinge, Bottom (Replaces: 2254473) |
|
Immediately | $ 7.62 | ||||
| 11 | WPW10520304 | Hole Plug (white) (Replaces: W10520304) |
|
Immediately | $ 16.47 | ||||
| 12 | WPW10283959 | Filler, Wrapper (white) (Replaces: W10283959) |
|
$ 7.04 | |||||
| 13 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 9.79 | ||||
| 14 | 3400524 | Bolt (Replaces: W10142287) |
|
$ 11.39 | |||||
| 15 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 7.01 | ||||
| 16 | W10883637 | Shim, Top Hinge (Replaces: W10338247) |
|
$ 13.67 | |||||
| 17 | W11307290 | Cover, Unit (Replaces: W10609390) |
|
- | |||||
| 18 | WP487576 | Washer, Plastic (Replaces: 487576) |
|
Immediately | $ 8.89 | ||||
| 19 | WP2174706 | Clip, Roller (Replaces: 2174706) |
|
$ 9.88 | |||||
| 20 | W10846529 | Dome Cap (white) (Replaces: W10674771) |
|
Immediately | $ 16.99 | ||||
| 21 | W10847959 | Dome Cap, Washer (Replaces: W10674773) |
|
$ 9.66 | |||||
| 22 | WPW10300129 | Grille (white) (Replaces: W10300129) |
|
$ 93.90 | |||||
| 11A | WPW10520307 | Hole Plug (grey) (Replaces: W10520307) |
|
Immediately | $ 6.47 | ||||
| 12A | W10851579 | Filler, Wrapper (grey) (Replaces: W10283961) |
|
Immediately | $ 6.47 | ||||
| 1A | W10834952 | Use & Care Guide |
|
- | |||||
| 20A | W10849198 | Dome Cap (grey) (Replaces: W10679139) |
|
$ 16.47 | |||||
| 22A | WPW10353941 | Grille (grey) (Replaces: W10353941) |
|
$ 131.34 | |||||
| 3A | WPW10359255 | Roller Assembly (right Hand) (Replaces: W10359255) |
|
Immediately | $ 86.27 | ||||
| 5A | WPW10353932 | Cover, Toe Grille (grey) (Replaces: W10353932) |
|
$ 73.29 |
