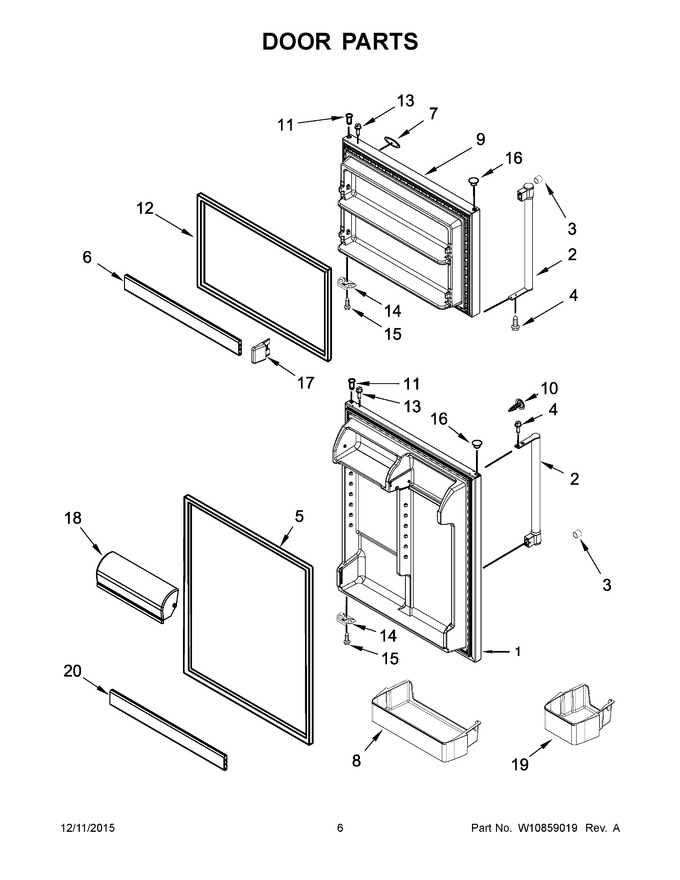

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10646224 | Refrigerator Door (includes Illustration 5) (white) (Replaces: W10646224) |
|
$ 726.88 | |||||
| 2 | W10837577 | Handle Door (white) (Replaces: W10580723) |
|
Immediately | $ 95.28 | ||||
| 3 | WPW10511911 | Bushing, Handle (Replaces: W10511911) |
|
$ 13.81 | |||||
| 4 | W10861883 | Screw (Replaces: 3400018) |
|
Immediately | $ 4.23 | ||||
| 5 | W10860480 | Door Gasket, Magnetic (white) (Replaces: W10692652) |
|
$ 265.49 | |||||
| 6 | W10592150 | Trim, Door |
|
$ 107.96 | |||||
| 7 | W11178521 | Badge (white) (Replaces: W10481434) |
|
Immediately | $ 56.82 | ||||
| 8 | WPW10308868 | Bin, Large Door (Replaces: W10308868) |
|
Immediately | $ 76.37 | ||||
| 9 | LW10646225 | Freezer Door (includes Illustration 12) (white) (Replaces: W10646225) |
|
$ 722.14 | |||||
| 10 | W10830984 | Hole Plug (white) (Replaces: W10663736) |
|
$ 7.18 | |||||
| 11 | W11189115 | Thimble-top (black) (Replaces: W10334042) |
|
$ 10.89 | |||||
| 12 | W10741118 | Door Gasket, Magnetic (white) (Replaces: W10692653) |
|
$ 284.60 | |||||
| 13 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.15 | |||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 15 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.07 | ||||
| 16 | WP2212648 | Hole Plug, Hinge Sleeve (white) (Replaces: 2212648) |
|
$ 7.02 | |||||
| 17 | W10838039 | Cap, Trim End (Replaces: W10592153) |
|
Immediately | $ 47.73 | ||||
| 18 | W11675283 | Compartment, Door (Replaces: W10601425) |
|
$ 29.43 | |||||
| 19 | WPW10308869 | Bin, Medium (Replaces: W10308869) |
|
Immediately | $ 64.96 | ||||
| 20 | W11126062 | Trim, Door (Replaces: W10592148) |
|
$ 109.15 | |||||
| 10A | W10830982 | Hole Plug (grey) (Replaces: W10663739) |
|
Immediately | $ 16.75 | ||||
| 12A | W10249196 | Door Gasket, Magnetic (grey) (Replaces: W10171479) |
|
Immediately | $ 239.23 | ||||
| 16A | WP2254517 | Hole Plug, Hinge Sleeve (grey) (Replaces: 2254517) |
|
Immediately | $ 20.86 | ||||
| 1A | LW10818839 | Refrigerator Door (includes Illustration 5) (stainless) (Replaces: W10818839) |
|
- | |||||
| 2A | W10837029 | Handle Door (stainless) (Replaces: W10653471) |
|
Immediately | $ 169.81 | ||||
| 5A | W10249195 | Door Gasket, Magnetic (grey) (Replaces: W10171475) |
|
$ 287.83 | |||||
| 7A | W11178521 | Badge (grey) (Replaces: W10481433) |
|
Immediately | $ 56.82 | ||||
| 9A | LW10818842 | Freezer Door (includes Illustration 12) (stainless) (Replaces: W10818842) |
|
- |
