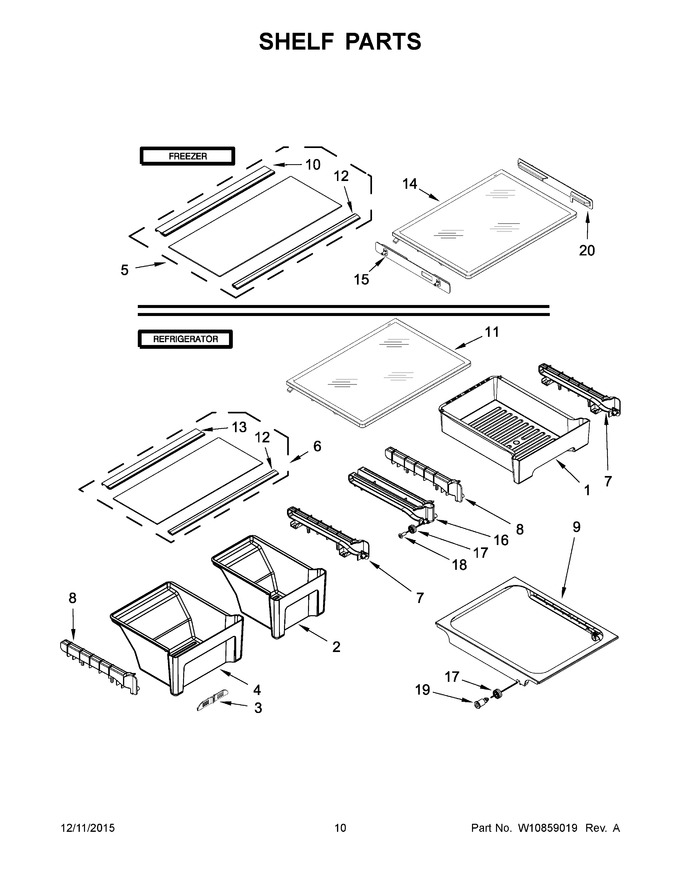

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10861806 | Pan, Meat (Replaces: W10714006) |
|
$ 169.15 | |||||
| 2 | W11190823 | Pan, Crisper (Replaces: W10662133) |
|
$ 122.16 | |||||
| 3 | W11590562 | Control, Humidity (Replaces: W10356844) |
|
$ 20.10 | |||||
| 4 | W10860122 | Pan, Crisper 16 (Replaces: W10663427) |
|
$ 139.08 | |||||
| 5 | W10691486 | Assembly, Shelf Crisper |
|
- | |||||
| 6 | WPW10691487 | Assembly, Shelf (Replaces: W10691487) |
|
$ 220.96 | |||||
| 7 | W11051442 | Track Rail, Right Hand (Replaces: W10694151) |
|
$ 103.73 | |||||
| 8 | W11025586 | Track Rail, Left Hand (Replaces: W10694149) |
|
$ 106.84 | |||||
| 9 | W10861519 | Holder, Meat Pan (Replaces: W10628698) |
|
Immediately | $ 78.99 | ||||
| 10 | W10730166 | Trim, Shelf Rear (Replaces: W10691459) |
|
$ 104.07 | |||||
| 11 | W11736734 | Assembly, Shelf Rc (Replaces: W10691516) |
|
Immediately | $ 231.86 | ||||
| 12 | WPW10691487 | Trim, Shelf Front (Replaces: W10691528) |
|
$ 220.96 | |||||
| 13 | WPW10691487 | Trim, Shelf Rear (Replaces: W10691529) |
|
$ 220.96 | |||||
| 14 | WPW10486291 | Shelf, Freezer Glass (Replaces: W10486291) |
|
$ 259.24 | |||||
| 15 | W11395919 | Support, Freezer Shelf (left Side) (Replaces: W10345367) |
|
$ 25.78 | |||||
| 16 | W11652044 | Track Rail, Center (Replaces: W10694150) |
|
$ 32.93 | |||||
| 17 | W11164152 | Roller, Pan (Replaces: W10628713) |
|
Immediately | $ 13.49 | ||||
| 18 | WP3400065 | Screw (stainless) (Replaces: 3400065) |
|
Immediately | $ 6.97 | ||||
| 19 | W11175807 | Axle, Roller (Replaces: W10628712) |
|
Immediately | $ 15.35 | ||||
| 20 | W11395921 | Support, Freezer Shelf (right Side) (Replaces: W10345368) |
|
$ 25.78 |
