SELECT A DIAGRAM

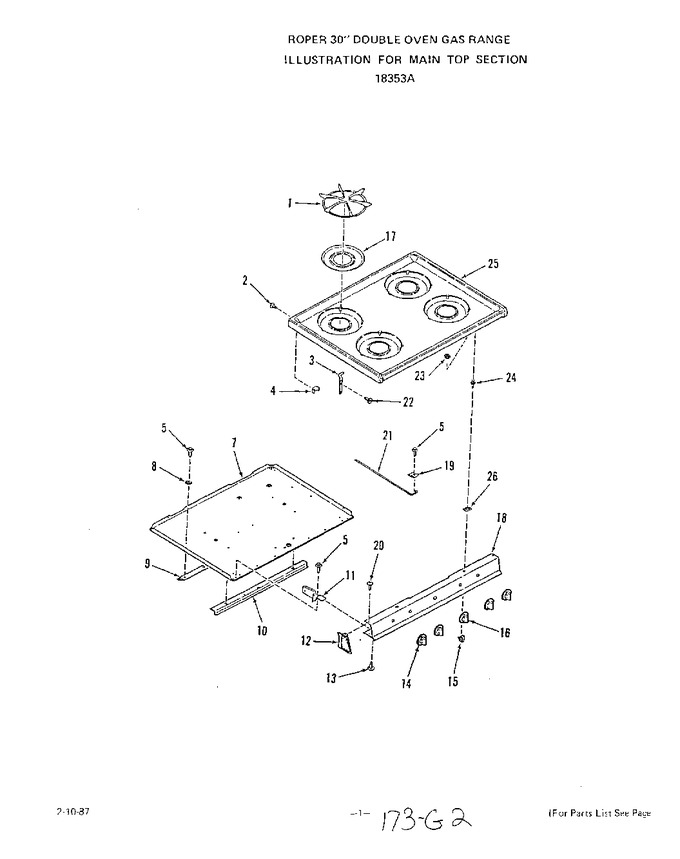

02 - Main Top


03 - Griddle


04 - Burner Section


05 - Upper Oven Burner Section


06 - Lower Body


07 - Oven Door


08 - Upper Body


09 - Oven Control Panel


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316786		Top Grate (4 Req)		Appelez-nous	-
2	316849		Screw-10-32x1/2``		Appelez-nous	-
4	320922		Left		Appelez-nous	-
4	320921		Right		Appelez-nous	-
4	327403		Bracket-main Top Hinge (lt. Or Rt.)		Appelez-nous	-
5	327320		Screw 10-16x7/16``		Appelez-nous	-
7	331575		Burner Box Bottom		Appelez-nous	-
8	106462		Washer		Appelez-nous	-
9	329158		Stiffener-burner Box Bottom (rear)		Appelez-nous	-
10	327705		Stiffener-burner Box Bottom (front)		Appelez-nous	-
11	328924		Right		Appelez-nous	-
11	328808		Left		Appelez-nous	-
12	328498		Left		Appelez-nous	-
12	328499		Right		Appelez-nous	-
13	326974		Screw		Appelez-nous	-
14	328805		Knob-gas Valve (4 Reg)		Appelez-nous	-
15	24667		Catch - Main Top Strike		Appelez-nous	-
16	331768		Knob-thermostat		Appelez-nous	-
17	322888		Aeration Pan		Appelez-nous	-
18	331763		Manifold Panel		Appelez-nous	-
19	326348		Clamp-support Rod		Appelez-nous	-
21	326066		Support Rod Main		Appelez-nous	-
22	326662		Screw 10-32x3/4``		Appelez-nous	-
23	239764		Keps Nut 8-32		Appelez-nous	-
24	239113		Screw 10-32x3/8``		Appelez-nous	-
25	328907		White		Appelez-nous	-
25	328911		Almond		Appelez-nous	-
26	310218		Washer Catch Mt.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
