02 - Main Top
03 - Griddle
04 - Burner Section

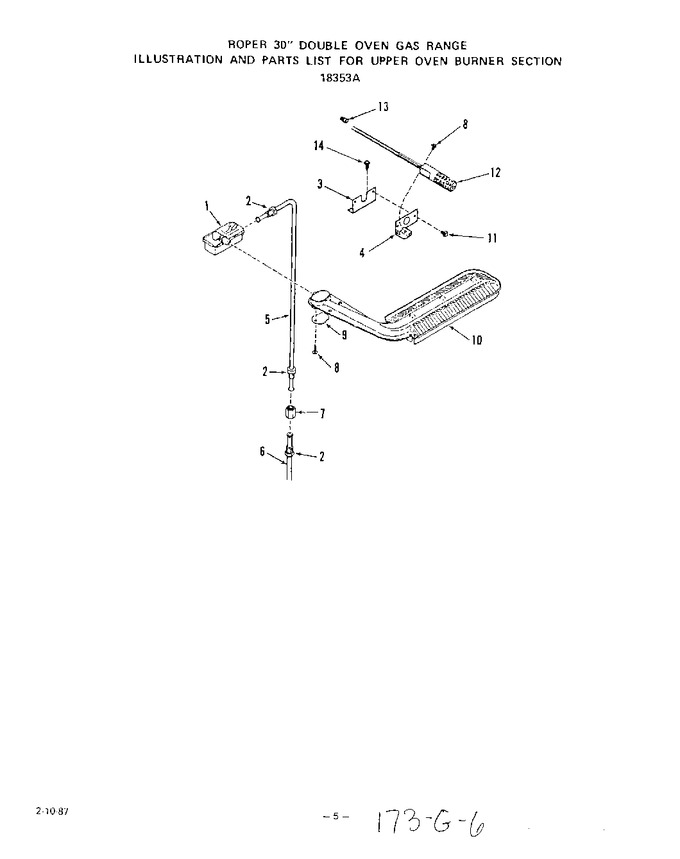

05 - Upper Oven Burner Section
06 - Lower Body
07 - Oven Door
08 - Upper Body
09 - Oven Control Panel
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 326477 | Control Valve |
|
- | |||||
| 2 | 113384 | Invert Nut 3/8`` |
|
- | |||||
| 3 | 325484 | Bracket-igniter |
|
- | |||||
| 4 | 311689 | Bracket-igniter |
|
- | |||||
| 5 | 295037 | Tubing 3/8`` (union To Upper Cont. Valve) |
|
- | |||||
| 6 | 279542 | Tubing 3/8`` (union To Shut Off Valve) |
|
- | |||||
| 7 | 113372 | Union Connector 3/8`` |
|
- | |||||
| 8 | 105771 | Screw 10 - 32 X 1/4`` |
|
- | |||||
| 9 | 323455 | Air Shutter |
|
- | |||||
| 10 | 331854 | Oven Burner Asm |
|
- | |||||
| 11 | 69605 | Screw 10abx3/8`` |
|
- | |||||
| 12 | WG02F04373 | Igniter (Replaces: 319887) |
|
Immediately | $ 109.23 | ||||
| 13 | 103595 | Wire Connector (2 Req) |
|
- | |||||
| 14 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 |
