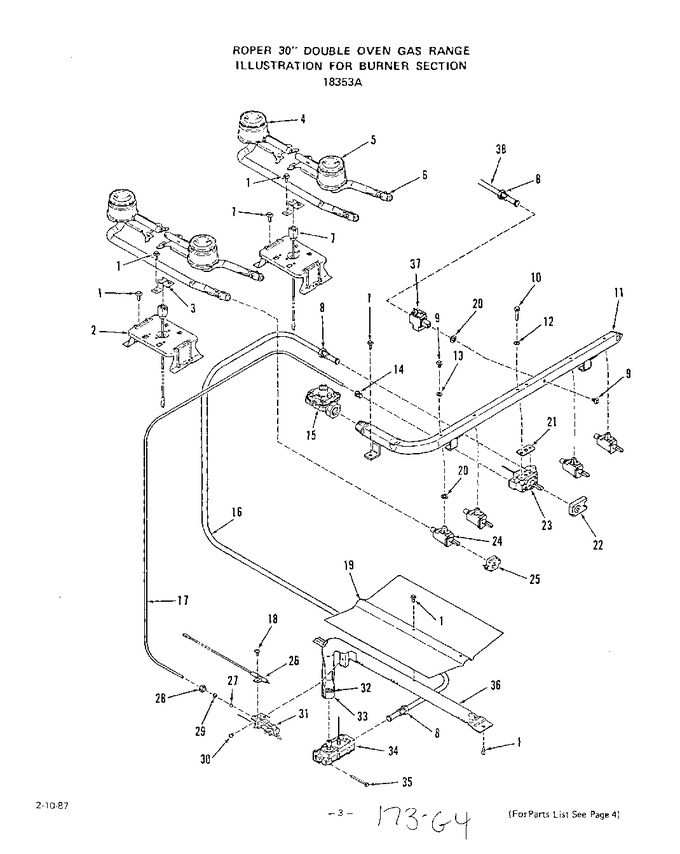

04 - Burner Section
05 - Upper Oven Burner Section
06 - Lower Body
07 - Oven Door
08 - Upper Body
09 - Oven Control Panel
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 2 | 327073 | Support-top Burner (lt. Or Rt.) |
|
- | |||||
| 3 | 312453 | Bracket-spark Igniter (lt. Or Rt.) |
|
- | |||||
| 4 | 327075 | Rear Top Burner-rt. Or Lt. (inc`s. 6) |
|
- | |||||
| 5 | 327074 | Front Top Burner-rt. Or Lt. (inc`s. 6) |
|
- | |||||
| 6 | 327198 | Air Shutter |
|
- | |||||
| 7 | 312455 | Right |
|
- | |||||
| 7 | 327216 | Left |
|
- | |||||
| 8 | 113384 | Inverted Nut 3/8`` |
|
- | |||||
| 9 | 311455 | Mounting Screw 1/4-20 (inc`s. 13) |
|
- | |||||
| 10 | 318478 | Mounting Screw 10-24 (inc`s. 12) |
|
- | |||||
| 11 | 328588 | Manifold Pipe |
|
- | |||||
| 12 | 318658 | Silicone Rubber Gasket |
|
- | |||||
| 13 | 311692 | Silicone Rubber Gasket |
|
- | |||||
| 14 | 79673 | Loxit Nut |
|
- | |||||
| 15 | 324528 | Pressure Regulator |
|
- | |||||
| 16 | 315807 | Tubing 3/8`` (thermostat To Lo.ov. Control) |
|
- | |||||
| 17 | 322447 | Tubing 3/16`` |
|
- | |||||
| 18 | 300000 | Screw 6-32 X 5/16`` |
|
- | |||||
| 19 | 329316 | Baffle - Oven Burner |
|
- | |||||
| 20 | 313563 | Silicone Rubber Gasket |
|
- | |||||
| 21 | 318657 | Silicone Rubber Gasket |
|
- | |||||
| 22 | 318432 | Switch-thermostat |
|
- | |||||
| 23 | 321983 | Oven Thermostat (inc`s. 21) |
|
- | |||||
| 24 | 331996 | Gas Valve (4 Req) (inc`s. 20) |
|
- | |||||
| 25 | 310253 | Switch-gas Valve (4 Req) |
|
- | |||||
| 26 | 327217 | Electrode-oven Spark Igniter |
|
- | |||||
| 27 | 318485 | Orifice Cup Only (for 31) |
|
- | |||||
| 28 | 65712 | Compression Nut 3/16`` |
|
- | |||||
| 29 | 65711 | Compression Ball Sleeve 3/16`` |
|
$ 6.30 | |||||
| 30 | 288248 | Screw 10-24x1/4`` |
|
- | |||||
| 31 | 318486 | Pilot Only (inc`s. 27) |
|
- | |||||
| 32 | 312989 | Adjustment Screw -air Shutter |
|
- | |||||
| 33 | 312988 | Air Shutter |
|
- | |||||
| 34 | 321755 | Control Valve (inc`s. 27 & 31) |
|
- | |||||
| 35 | 323296 | Screw 10-32 X 2`` |
|
- | |||||
| 36 | 329651 | Oven Burner (inc`s. 19, 32 & 33) |
|
- | |||||
| 37 | 326830 | Shut Off Valve |
|
- | |||||
| 38 | 279542 | Tubing 3/8`` (shut Off To Union) |
|
- |
