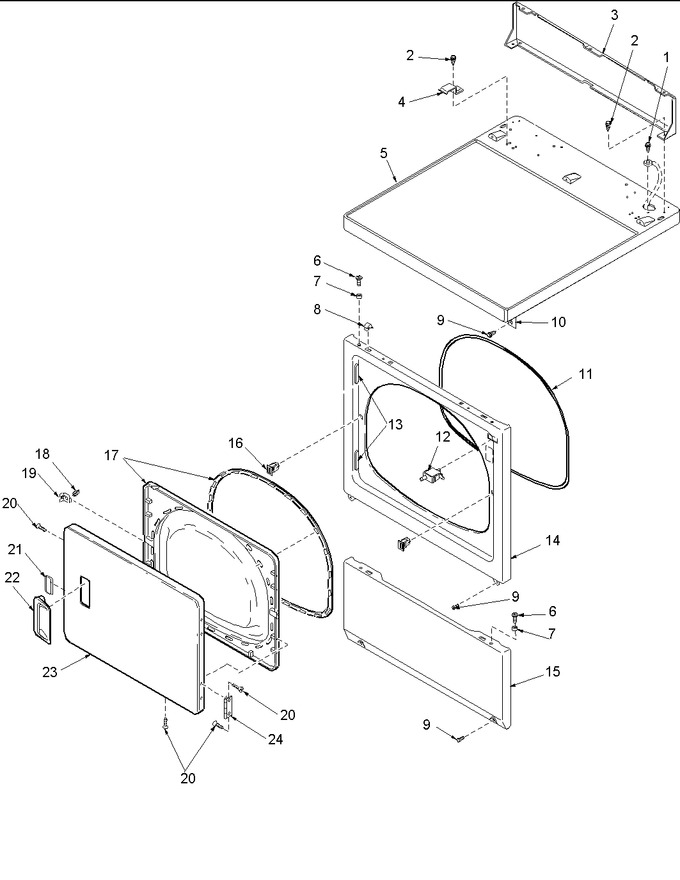

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	40121401		Panel, Home Hood Back		Appelez-nous	-
4	Y503876		Clip, Hold Down		Appelez-nous	-
5	40070301W		Assy, Top Panel (wht)		Appelez-nous	-
8	WP22001650		Clip, Spring   (Replaces: 56080)			Immediately	$ 7.34
10	40130801		Bracket,top Mount		Appelez-nous	-
11	504005		Seal, Front Panel				$ 49.57
12	W10169313		Switch, Door   (Replaces: Y504570)			Immediately	$ 29.18
13	503126		Plug, Hinge Hole		Appelez-nous	-
14	503656W		Panel, Front (wht)		Appelez-nous	-
15	40045301W		Panel, Access (wht)		Appelez-nous	-
16	LA-1003		Catch, Door   (Replaces: 54660)			Immediately	$ 24.51
17	503643W		Assembly, Seal & Liner		Appelez-nous	-
18	LA-1003		Strike, Door (metal)   (Replaces: 500039)			Immediately	$ 24.51
19	40116201		Bracket,door Strike				$ 5.51
20	D500226		Screw, 8b-16x5/8 Tap   (Replaces: 500226)				$ 3.88
21	505328		Wedge, Door Handle		Appelez-nous	-
22	503646W		Pull, Door (wht)		Appelez-nous	-
23	503654W		Door, Dryer (wht)		Appelez-nous	-
24	Y503676		Hinge, Door & Top				$ 40.54
