SELECT A DIAGRAM

01 - Cabinet And Base


02 - Control Panel


03 - Door And Front, Access, And Top Panels


04 - Front Bulkhead, Air Duct & Drum


05 - Gas Valve, Igniter & Gas Conversion Kit


06 - Miscellaeous Information


07 - Motor And Fan Assemblies


08 - Rear Bulkhead, Rollers & Air Duct Assy

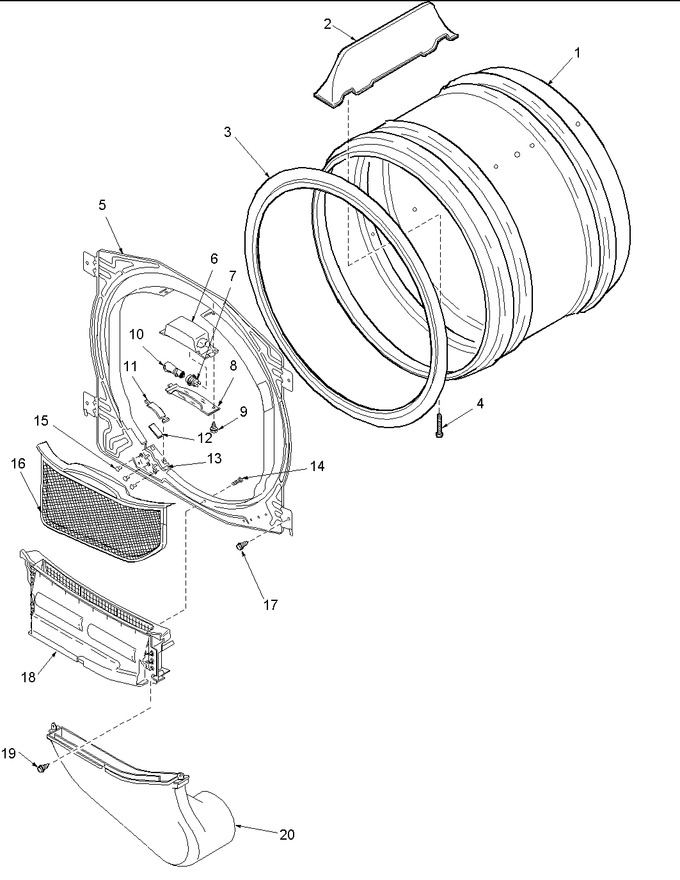

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	504467W		Assembly, Cylinder (wht)		Appelez-nous	-
2	503703		Baffle, Cylinder (wht)				$ 28.73
3	WP37001132		Seal, Cylinder   (Replaces: 501801)			Immediately	$ 54.31
4	Y62588		Screw, 10bt-12 X 1 Tap		Appelez-nous	-
5	D511033WP		Assy,blkhd Front Co   (Replaces: 503756W)				$ 203.45
11	40116501		Glide,cylinder(tan)		Appelez-nous	-
11	40116502		Glide, Cyclinder Green		Appelez-nous	-
12	WP500121		Pad, Felt-coin   (Replaces: 500121)			Immediately	$ 7.75
13	12002090		Bracket, Cylinder Glide   (Replaces: 501554)				$ 98.33
16	WP37001142		Filter,lint-wht   (Replaces: Y503627)			Immediately	$ 112.23
18	505528		Assy, Air Duct		Appelez-nous	-
20	Y503626		Duct, Air Lower		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
