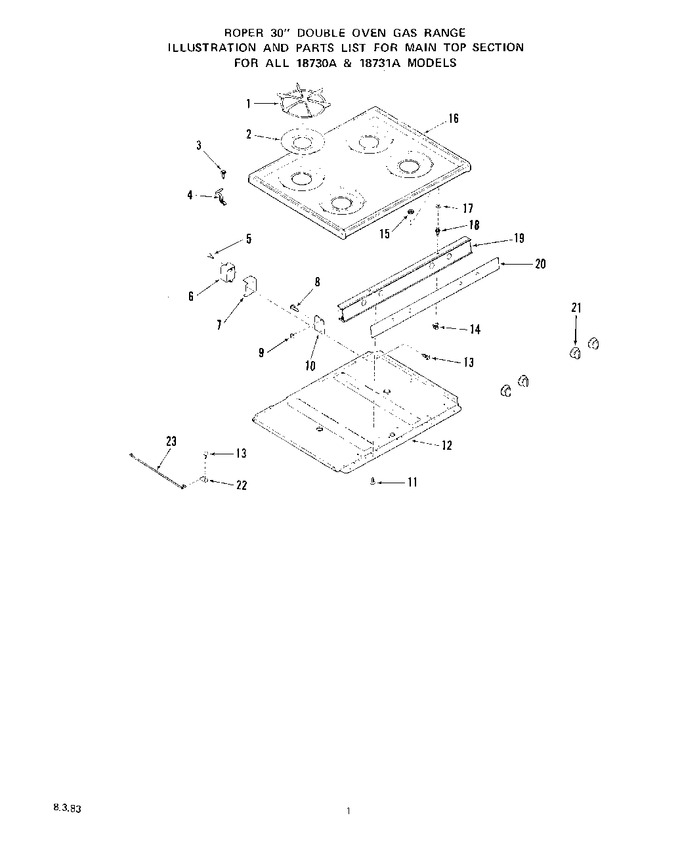

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316786		Top Grate (4 Req)		Appelez-nous	-
2	322888		Spill Bowl (4 Req)		Appelez-nous	-
3	316365		Screw 10-32x7/16``		Appelez-nous	-
4	323405		Hinge-main Top (left)		Appelez-nous	-
4	323404		Hinge-main Top (right)		Appelez-nous	-
5	108788		Screw 6-32 X 1/2``		Appelez-nous	-
6	320990		Module-spark Igniter		Appelez-nous	-
7	315369		Bracket - Spark Igniter Module		Appelez-nous	-
8	102429		Screw 10 - 32 X 3/8``		Appelez-nous	-
9	295268		Screw 6-32x3/8``		Appelez-nous	-
10	318259		End Cap-manifold Panel (right)		Appelez-nous	-
10	318258		End Cap-manifold Panel (left)		Appelez-nous	-
11	239113		Screw 10-32x3/8``		Appelez-nous	-
12	323918		Burner Box Bottom		Appelez-nous	-
13	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
14	24667		Catch - Main Top Strike		Appelez-nous	-
15	239764		Hex Nut 8-32		Appelez-nous	-
16	316815		Main Top (golden Wheat)		Appelez-nous	-
16	316813		Main Top (white)		Appelez-nous	-
16	316817		Main Top (coffee)		Appelez-nous	-
16	316816		Main Top (avocado)		Appelez-nous	-
16	316814		Main Top (almond)		Appelez-nous	-
17	99279		Washer		Appelez-nous	-
18	299784		Strike (2 Req)		Appelez-nous	-
19	325482		Manifold Panel		Appelez-nous	-
20	323806		Trim-manifold Panel		Appelez-nous	-
21	324893		Knob-gas Valve (4 Req)		Appelez-nous	-
22	285945		Clip		Appelez-nous	-
23	315379		Support Rod-main Top		Appelez-nous	-
