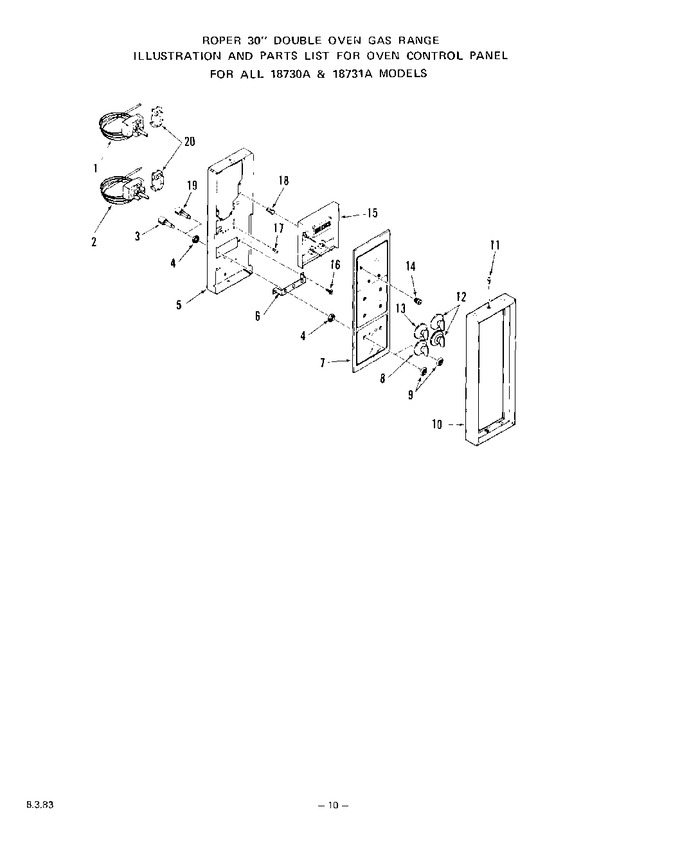

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	324372		Thermostat-upper Oven		Appelez-nous	-
2	321513		Thermostat-lower Oven		Appelez-nous	-
3	288557		Push Switch (fluorescent Light)		Appelez-nous	-
4	236129		Pal Nut (4 Req)		Appelez-nous	-
5	305727		Mounting Panel-controls		Appelez-nous	-
6	305729		Mounting Bracket-switches		Appelez-nous	-
7	325036		Glass-control Panel		Appelez-nous	-
8	321074		Knob-lower Oven Thermostat		Appelez-nous	-
9	321667		Trim Nut		Appelez-nous	-
10	282279		Frame-control Panel		Appelez-nous	-
11	102376		Screw 10-32 X 1/2``		Appelez-nous	-
12	321519		Knob-selector Switch		Appelez-nous	-
13	321100		Knob-upper Oven Thermostat		Appelez-nous	-
14	109225		Knob-clock (start & Stop Time) (3)		Appelez-nous	-
15	303005		Clock W/hr. Timer		Appelez-nous	-
16	239113		Screw 10-32x3/8``		Appelez-nous	-
17	78565		Screw 8-32x3/16``		Appelez-nous	-
18	293577		Tubular Clip		Appelez-nous	-
19	306333		Push Switch-upper & Lower Oven Light		Appelez-nous	-
20	324911		Main		Appelez-nous	-
20	324000		Xgas Use & Care Guide		Appelez-nous	-
20	324771		Xinstallation & Reference Guide		Appelez-nous	-
20	324774		Xoperating Guide		Appelez-nous	-
20	326890		Xrepair Parts Manual		Appelez-nous	-
20	326868		Gas Valve Sw.-all 18731a Models		Appelez-nous	-
20	321517		Selector Switch		Appelez-nous	-
20	324704		Gas Valve Switches-all 18730a Models		Appelez-nous	-
20	323807		Thermostat		Appelez-nous	-
20	308350		Control Valve		Appelez-nous	-
