01 - Main Top
02 - Burner
03 - Lower Oven Body
04 - Oven Door
05 - Upper Oven Burner
06 - Upper Door
07 - Oven Control Panel
08 - Oven Control Panel
09 - Section
SELECT A DIAGRAM
New Model Search:

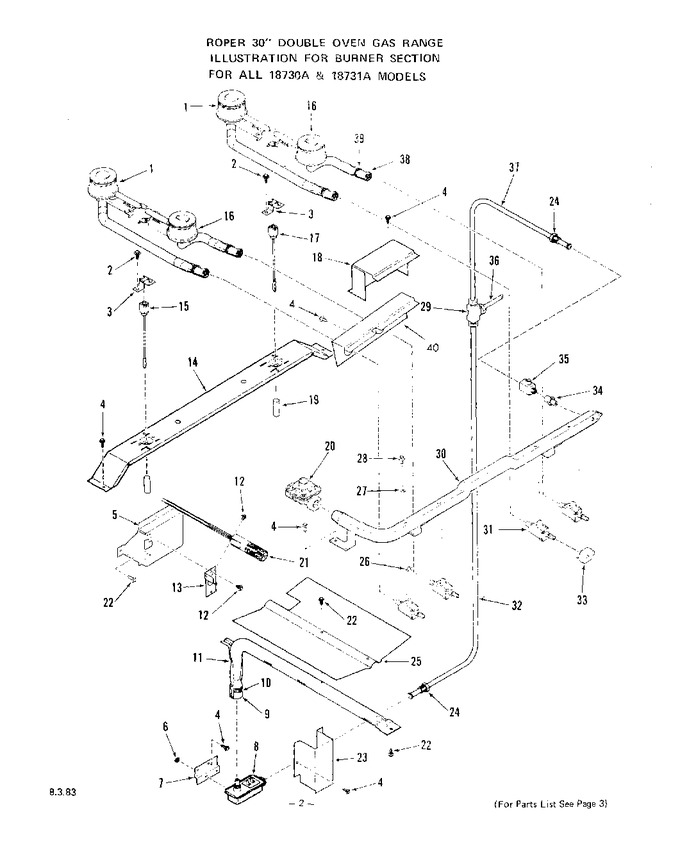

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 310197 | Rear Top Burner (inc`s. 38 & 39) |
|
- | |||||
| 2 | 102429 | Screw 10 - 32 X 3/8`` |
|
- | |||||
| 3 | 312453 | Bracket-spark Igniter (lt. Or Rt.) |
|
- | |||||
| 4 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 | |||||
| 5 | 316076 | Bracket-igniter |
|
- | |||||
| 6 | 236313 | Hex Nut 6-32 |
|
- | |||||
| 7 | 296179 | Bracket-control Valve |
|
- | |||||
| 8 | 308319 | Control Valve |
|
- | |||||
| 9 | 312988 | Air Shutter |
|
- | |||||
| 10 | 312989 | Adjustment Screw -air Shutter |
|
- | |||||
| 11 | 324864 | Oven Burner (inc`s. 9, 10 & 25) |
|
- | |||||
| 12 | 105771 | Screw 10 - 32 X 1/4`` |
|
- | |||||
| 13 | 311689 | Bracket-igniter Mounting |
|
- | |||||
| 14 | 313375 | Support-top Burner |
|
- | |||||
| 15 | 312455 | Electrode-top Igniter (lt.) |
|
- | |||||
| 16 | 310196 | Front Top Burner (inc`s. 38 & 39) |
|
- | |||||
| 17 | 312598 | Electrode-top Igniter (rt.) |
|
- | |||||
| 18 | 308315 | Wire Cover-thermostat |
|
- | |||||
| 19 | 314132 | Sleeve-igniter Wires (rt. Or Lt.) |
|
- | |||||
| 20 | 324529 | Pressure Regulator |
|
- | |||||
| 21 | WG02F04373 | Igniter-oven Burner (Replaces: 319887) |
|
Immediately | $ 109.23 | ||||
| 22 | 316365 | Screw 10-32x7/16`` |
|
- | |||||
| 23 | 307002 | Cover-wire |
|
- | |||||
| 24 | 113384 | Inverted Nut 3/8`` |
|
- | |||||
| 25 | 308321 | Baffle - Oven Burner |
|
- | |||||
| 26 | 313563 | Gasket (4 Req. For Key 31) |
|
- | |||||
| 27 | 304241 | Gasket (4 Req) |
|
- | |||||
| 28 | 311455 | Screw 1/4-20 (4 Req) |
|
- | |||||
| 29 | 237347 | Tee 3/8`` |
|
- | |||||
| 30 | 323805 | Manifold Pipe |
|
- | |||||
| 31 | 324912 | Gas Valve (4 Req. Inc`s. 26) |
|
- | |||||
| 32 | 324524 | Tubing 3/8`` (tee To Oven Burner) |
|
- | |||||
| 33 | 310253 | Switch-gas Valve (4 Req) |
|
- | |||||
| 34 | 312833 | Fitting |
|
- | |||||
| 35 | 292894 | Shut Off Valve |
|
- | |||||
| 36 | 324517 | Tubing 3/8`` (tee To Upper Control Valve) |
|
- | |||||
| 37 | 324521 | Tubing 3/8`` (shut-off Valve To Tee) |
|
- | |||||
| 38 | 301910 | Air Shutter |
|
- | |||||
| 39 | 301911 | Adjustment Screw-air Shutter |
|
- | |||||
| 40 | 326865 | Wire Cover-gas Valve-all 18730a Models (right) |
|
- | |||||
| 40 | 326863 | Wire Cover-gas Valve-all 18730a Models (left) |
|
- |
