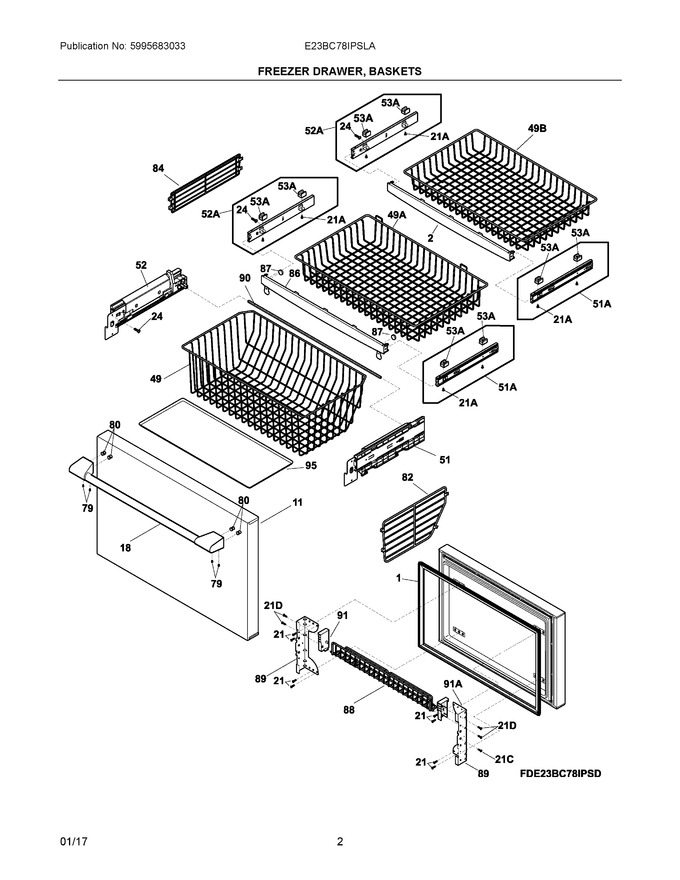

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304537408		Gasket-frzr Drawer   (Replaces: 5304502761)			Immediately	$ 86.28
2	5304507340		Trim   (Replaces: 241807605)			Immediately	$ 45.55
11	241987918		Drawer				$ 525.63
18	242052504		Handle Assembly   (Replaces: 241637928)				$ 313.97
21	241690602		Screw			Immediately	$ 10.63
24	240383412		Screw				$ 11.44
49	242027002		Basket-frzr				$ 215.04
51	5303918696		Slide Assembly				$ 223.25
52	5303918695		Slide Assembly				$ 230.35
79	218755406		Screw-set		Appelez-nous	-
80	218755504		Screw			Immediately	$ 18.60
82	242027102		Divider		Appelez-nous	-
84	241780908		Divider				$ 54.63
86	241953202		Bar				$ 165.14
87	241812202		Magnet				$ 72.30
88	241824009		Rack-non Tilt-out   (Replaces: 241824007)				$ 411.79
89	241972302		Bracket-freezer Drawer				$ 109.21
90	241770705		Bar   (Replaces: 241770702)				$ 50.66
91	241824102		Cap-door Rack				$ 17.44
95	241770811		Tray				$ 109.36
21A	241953902		Screw			Immediately	$ 17.11
21C	242146401		Screw			Immediately	$ 14.27
21D	242015001		Screw			Immediately	$ 16.30
49A	241780823		Basket-frzr				$ 172.88
49B	241831304		Basket-frzr				$ 194.72
51A	241894227		Slide Assembly				$ 121.91
52A	241894228		Slide Assembly				$ 121.20
53A	5303918801		Retainer-basket   (Replaces: 242216301)				$ 12.89
91A	241824101		Cap				$ 17.44
NI	5303918697		Alignment Kit		Appelez-nous	-
NI	241899703		Screw				$ 15.92
NIA	5304497384		Plate				$ 15.60
NIA	242011101		Pin-lock				$ 15.17
NIA	241979601		Bumper				$ 22.68
NIA	242039701		Screw				$ 13.46
NIA	5304453707		Screw   (Replaces: 241953901)			Immediately	$ 15.92
