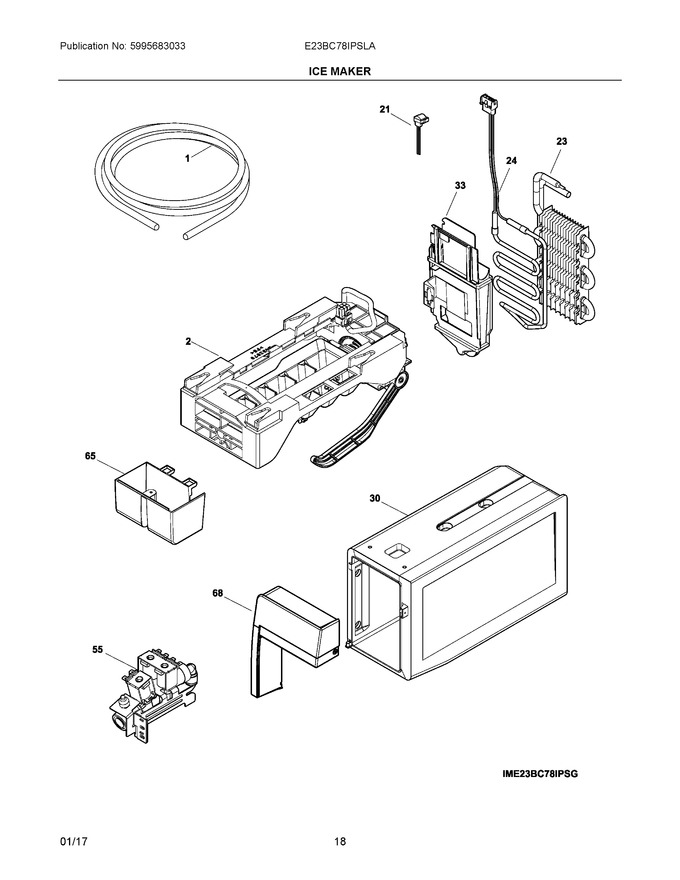

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976435 | Tube-water |
|
$ 20.56 | |||||
| 2 | 243297613 | Ice Maker (Replaces: 243297606) |
|
Immediately | $ 117.66 | ||||
| 21 | 5303918810 | Thermostat (Replaces: 808113301) |
|
Immediately | $ 43.99 | ||||
| 23 | 242094603 | Evaporator |
|
$ 138.07 | |||||
| 24 | 242094802 | Heater-defrost |
|
Immediately | $ 113.92 | ||||
| 30 | 242100402 | Housing Assembly |
|
$ 149.54 | |||||
| 33 | 242094401 | Housing-evaporator |
|
$ 6.39 | |||||
| 55 | 242252702 | Valve |
|
Immediately | $ 132.71 | ||||
| 65 | 808462601 | Cover |
|
Immediately | $ 36.86 | ||||
| 68 | 242095002 | Cover |
|
$ 94.82 | |||||
| NI | 241806601 | Connector-water (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 5303918446 | Heat Exchanger |
|
$ 401.86 | |||||
| NI | 240396801 | Clamp |
|
$ 19.13 | |||||
| NI | 241503901 | Connector-water |
|
$ 51.22 | |||||
| NIA | 241695906 | Screw |
|
$ 19.13 | |||||
| NIA | 218709101 | Screw |
|
$ 6.38 | |||||
| NIA | 5303918571 | Tube-water (Replaces: 241844403) |
|
$ 164.24 | |||||
| NIA | 242096001 | Insulation |
|
$ 19.72 | |||||
| NIA | 215688131 | Tape |
|
- | |||||
| NIB | 5303918784 | Gasket (Replaces: 242124801) |
|
Immediately | $ 122.75 | ||||
| NIB | 5303918784 | Gasket-evap Housing (Replaces: 242095401) |
|
Immediately | $ 122.75 | ||||
| NIB | 240363602 | Screw-shoulder |
|
$ 13.65 | |||||
| NIB | 241920106 | Tube-water (Replaces: 241920104) |
|
Immediately | $ 60.67 | ||||
| NIC | 241964707 | Tube-water |
|
Immediately | $ 18.43 | ||||
| NIC | 242095402 | Gasket-evap Housing |
|
- | |||||
| NIC | 5303918784 | Gasket (Replaces: 242124802) |
|
Immediately | $ 122.75 | ||||
| NID | 242095403 | Gasket-evap Housing |
|
- | |||||
| NID | 5303918784 | Gasket (Replaces: 242146001) |
|
Immediately | $ 122.75 | ||||
| NID | 241965907 | Tube-water |
|
$ 21.23 | |||||
| NIE | 5303918784 | Gasket-evap Housing (Replaces: 242095404) |
|
Immediately | $ 122.75 | ||||
| NIE | 242200102 | Clip |
|
$ 10.63 | |||||
| NIF | 242095405 | Gasket-evap Housing |
|
- | |||||
| NIF | 242220112 | Tube-water |
|
$ 19.85 | |||||
| NIG | 242220113 | Tube-water |
|
$ 18.44 | |||||
| NIG | 242095408 | Gasket-evap Housing |
|
- | |||||
| NIH | 242095425 | Gasket-evap Housing (Replaces: 242095409) |
|
$ 10.31 |
