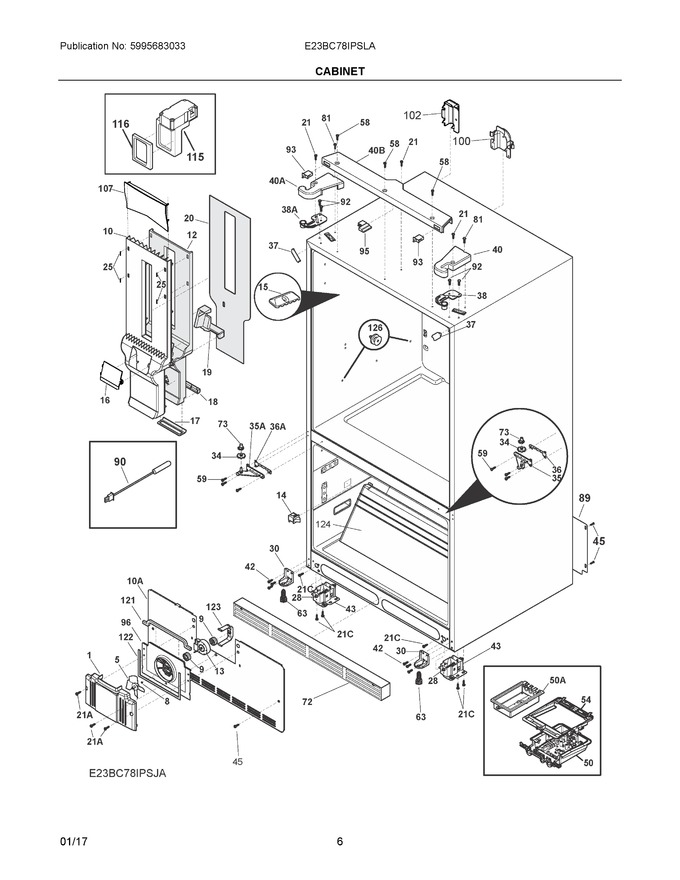

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241859701		Cover-fan				$ 49.86
5	5308000010		Fan Blade			Immediately	$ 49.03
8	215474201		Washer			Immediately	$ 18.43
9	241518301		Bushing				$ 66.63
10	242058504		Cover-air Duct				$ 170.73
12	242073901		Foam-air Supply				$ 66.31
13	809069220		Motor   (Replaces: 241509402)			Immediately	$ 154.14
14	242060202		Switch-light/lamp				$ 40.40
15	241891104		Light-led		Appelez-nous	-
16	242164401		Cover-damper				$ 21.16
17	241928201		Gasket-air Duct				$ 17.72
18	241928101		Duct-air				$ 8.23
19	241871901		Support-eps Damper				$ 18.43
20	241922902		Cover-air Duct				$ 0.07
21	241732101		Screw			Immediately	$ 15.60
25	241949502		Clip				$ 20.48
28	5304499445		Bolt-roller Adj   (Replaces: 240335502)			Immediately	$ 31.33
30	241778701		Bracket-anti Tip				$ 26.54
34	241868301		Washer				$ 31.19
35	241767211		Hinge-lower				$ 102.38
36	241868201		Spacer				$ 49.62
37	242161207		Trim-cabinet Corner				$ 7.25
38	241761301		Bracket-upper Hinge				$ 66.25
40	5304504483		Cover-upper Hinge   (Replaces: 241778009)				$ 64.58
42	240578902		Screw			Immediately	$ 14.18
43	5304499445		Roller Assy   (Replaces: 240335005)			Immediately	$ 31.33
45	241500303		Screw			Immediately	$ 4.55
50	5304499080		Board-main Power			Immediately	$ 273.58
54	807854301		Support				$ 45.36
58	241500305		Screw   (Replaces: 241853202)				$ 3.03
59	240442708		Screw-#10-32 X 3/4   (Replaces: 240442706)				$ 8.34
63	216396900		Screw			Immediately	$ 38.39
72	5303918795		Grille/kickplate   (Replaces: 241912602)				$ 432.34
73	242075701		Cam-lower Hinge				$ 22.75
81	134154100		Screw   (Replaces: 242025601)				$ 13.46
89	5304520905		Cover-access   (Replaces: 241733902)			Immediately	$ 74.03
90	240597220		Sensor   (Replaces: 240597203)			Immediately	$ 5.16
92	241710601		Screw				$ 13.46
93	241835505		Switch-light			Immediately	$ 70.16
95	241530501		Sensor				$ 121.19
96	241860601		Shroud-evap Fan Mtg			Immediately	$ 131.83
100	242157601		Cover				$ 11.92
102	242157501		Cover				$ 23.82
107	241963101		Duct-air				$ 41.16
115	5303918899		Damper   (Replaces: 241518501)			Immediately	$ 73.24
116	241518601		Seal-damper				$ 9.22
121	241860103		Gasket-evap			Immediately	$ 3.73
122	241860117		Gasket-evap   (Replaces: 241860102)			Immediately	$ 11.21
123	242135301		Clip				$ 7.79
124	242006903		Duct-air   (Replaces: 242006902)			Immediately	$ 63.70
126	242081301		Screw-shoulder		Appelez-nous	-
10A	241860402		Cover-evap Coil			Immediately	$ 130.91
21A	242015001		Screw			Immediately	$ 16.30
21C	218252201		Screw			Immediately	$ 14.18
35A	241767212		Hinge-lower				$ 103.90
36A	241868202		Spacer				$ 23.51
38A	241761302		Bracket-upper Hinge				$ 64.49
40A	5304504482		Cover-upper Hinge   (Replaces: 241778010)				$ 65.08
40B	241862405		Cover-upper Hinge				$ 101.65
50AA	241891611		Board-main				$ 283.45
NI	5304453707		Screw   (Replaces: 241953901)			Immediately	$ 15.92
NI	218362501		Screw				$ 12.05
NI	5304455650		Screw				$ 14.18
NI	240494001		Plug-button			Immediately	$ 18.20
NI	241695904		Screw				$ 14.41
NIA	807999001		Harness		Appelez-nous	-
NIA	241842301		Cap-thermistor			Immediately	$ 34.02
NIA	242015901		Harness-hinge Jumper				$ 146.71
NIA	241852501		Clip				$ 15.60
NIA	241859801		Cover-eps				$ 8.93
NIA	242004802		Foam Strip				$ 5.67
NIAA	242193602		Plug-hole   (Replaces: 241557601)				$ 14.41
NIAB	241860104		Gasket-coil Cover			Immediately	$ 29.77
NIAC	241860105		Gasket-coil Cover			Immediately	$ 17.87
NIB	241953902		Screw			Immediately	$ 17.11
NIB	241953904		Screw				$ 10.63
NIB	242045503		Harness-wiring				$ 40.40
NIBA	218515401		Clip-grille				$ 17.72
NIC	241969001		Cap				$ 16.69
