01 - Cover Sheet


02 - Control Panel / Door


03 - Tub / Water Delivery

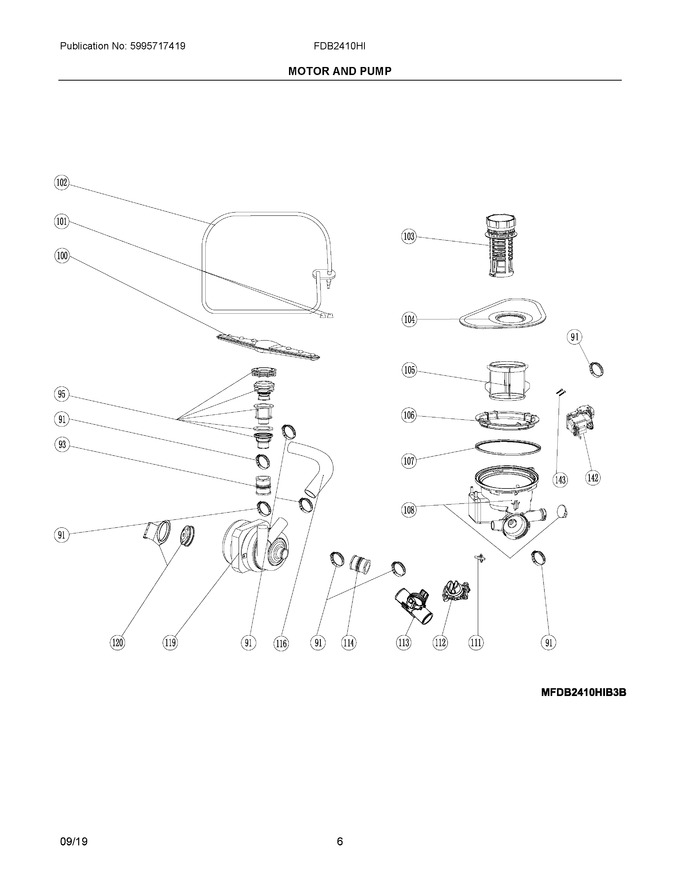

04 - Motor And Pump


05 - Racks / Hinges


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
91	5304522739		Clamp, Hose, Otk310		Appelez-nous	-
93	5304512129		Duct, Connecting, (2)   (Replaces: 5304461003)				$ 13.74
95	5304522740		Connector Assembly, Lower Spray Arm		Appelez-nous	-
100	5304522741		Spray Arm, Assembly, Lower		Appelez-nous	-
101	5304482462		Casing, Haeting Element, (2)		Appelez-nous	-
102	4056016530		Element Assembly, Heating   (Replaces: 5304470288)				$ 79.76
103	5304482463		Filter Assembly				$ 23.31
104	5304482464		Filter Assembly, Screen, Stainless				$ 103.01
105	5304482465		Filter Assembly, Micro				$ 39.79
106	5304482466		Nut, Sump Mtg.				$ 19.06
107	5304512882		Gasket, Sump				$ 24.57
108	5304512883		Sump Assembly				$ 127.96
111	5304483441		Thermistor			Immediately	$ 43.95
112	5304516684		Sensor, Turbidity		Appelez-nous	-
113	5304522742		Pipe, Installation		Appelez-nous	-
114	5304482455		Duct, Connecting, (2)				$ 20.58
116	5304522743		Duct, Connecting, External Pipe		Appelez-nous	-
119	5304512880		Pump Assembly, Motor, W/capacitor				$ 365.13
120	5304483453		Support Assembly, Motor, W/pad				$ 31.03
142	5304483444		Pump, Drain			Immediately	$ 175.00
143	5304482501		Screw, Rec, St4 X 15.5, (2)				$ 8.45

    View Diagram in Separate Window       Print Part List
