01 - Cover Sheet


02 - Control Panel / Door


03 - Tub / Water Delivery

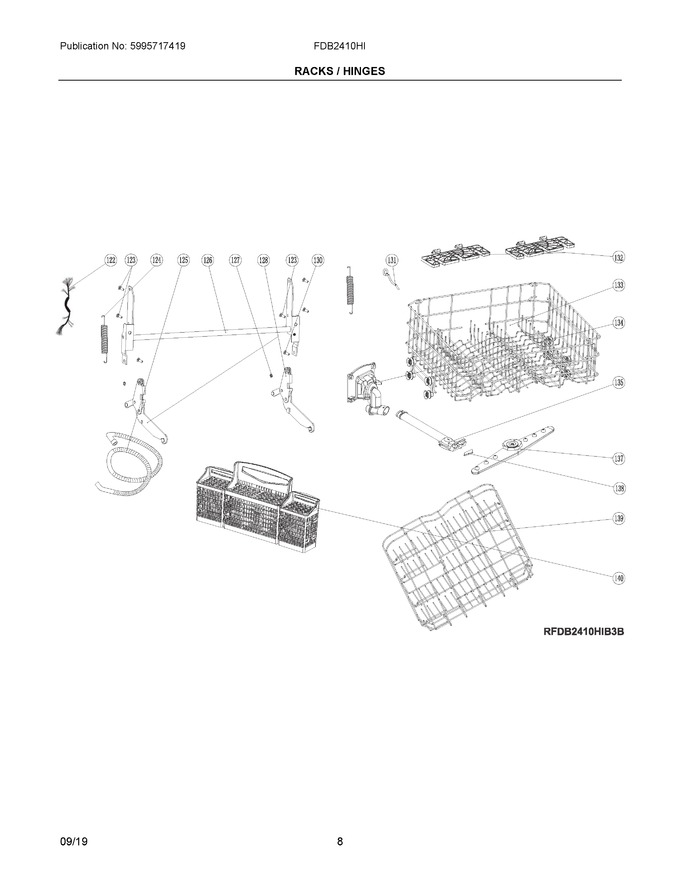

04 - Motor And Pump


05 - Racks / Hinges


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
122	5304522744		Harness, Wiring, Main		Appelez-nous	-
123	5304482478		Screw, Rec, M5 X 6, (5)		Appelez-nous	-
124	5304482479		Spring, Door, (2)				$ 21.37
125	154225602		Hose, Drain   (Replaces: 5304460989)			Immediately	$ 45.37
126	5304522745		Hinge Assembly, Door		Appelez-nous	-
127	5304482482		Ring, Clamping, (2)		Appelez-nous	-
128	5304482483		Hinge, Door, Lh				$ 70.56
130	5304482485		Pin, Hinge Joint, (2)				$ 12.71
131	5304482486		Bolt, Door Spring, (2)				$ 17.64
132	5304482487		Shelf, Cup, (2)		Appelez-nous	-
133	5304470264		Rack Assembly, Upper				$ 286.28
134	5304482489		Delivery Assembly, Spray Arm, Middle				$ 22.16
135	5304482490		Delivery Tube, Spray Arm, Middle				$ 17.73
137	5304522746		Spray Arm, Assembly, Middle		Appelez-nous	-
138	5304482492		Block, Fastener, Spray Arm				$ 10.34
139	5304518472		Rack Assembly, Lower   (Replaces: 5304518664)			Immediately	$ 216.88
140	5304482498		Basket Assembly, Complete   (Replaces: 5304470270)			Immediately	$ 43.38
128A	5304482484		Hinge, Door, Rh				$ 73.92
