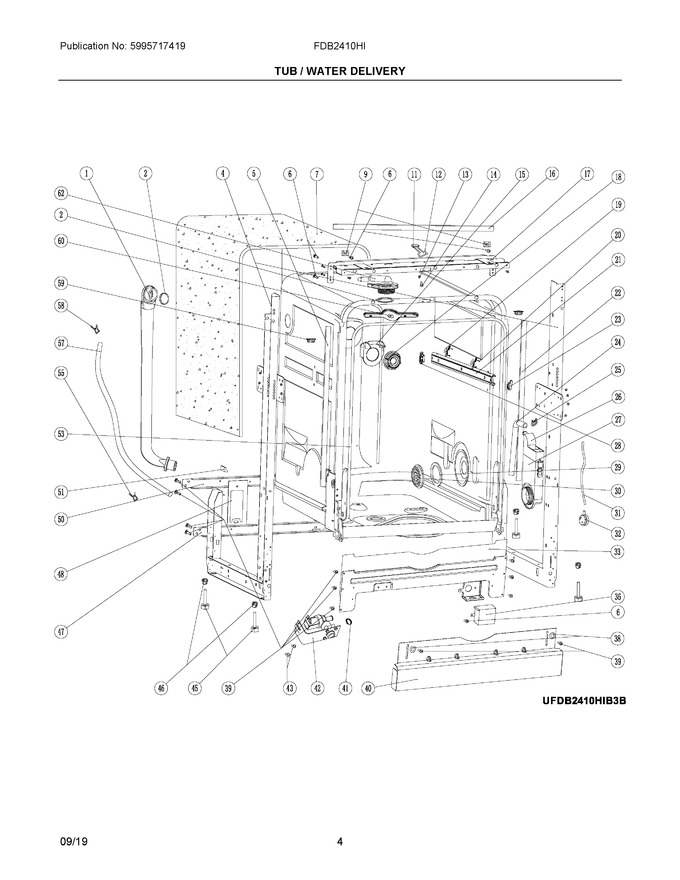

03 - Tub / Water Delivery


04 - Motor And Pump


05 - Racks / Hinges


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304522729		Delivery Hose, Assembly		Appelez-nous	-
2	5304482363		O Ring, Delivery Tube, (2)				$ 7.80
4	5304482365		Upright Assembly, Lh				$ 119.65
5	5304482368		Tub Guard, Lh, Black		Appelez-nous	-
6	5304483493		Screw, St3.5 X 9, (4)		Appelez-nous	-
7	5304522730		Insulation, Blanket, Tub, Sound Proof		Appelez-nous	-
9	5304482372		Block, Top, Black, (2)		Appelez-nous	-
11	5304482374		Block, Coupling, Door				$ 10.13
12	5304483485		Hook, Door Lock				$ 19.89
13	5304482375		Locknut, M4				$ 5.07
14	5304522731		Screw, Countertop		Appelez-nous	-
15	5304482377		Casing, Delivery Tube, Inlet				$ 21.37
16	5304482379		Tub Guard, Top, Black				$ 24.36
17	5304482381		Cross Piece, Front, Black, Upper		Appelez-nous	-
18	5304482382		Nut, Delivery Tube, Inlet				$ 19.16
19	5304522732		Bracket, Guide Rail, (4)		Appelez-nous	-
20	5304522733		O Ring, Bracket, Guide Rail, (8)		Appelez-nous	-
21	5304482385		Rail, Rack Guide, (2)		Appelez-nous	-
22	5304482387		Tub Guard, Rh, Black				$ 19.74
23	5304482388		Block, Guide Rail, Front, (2)		Appelez-nous	-
24	5304482389		Hose, Inlet, Tunnel				$ 68.76
25	5304482390		Clamp, Hose, 14.9 X 1.8				$ 17.72
26	5304482391		Cover, Water Tunnel				$ 18.43
27	5304482392		Tunnel, Water				$ 27.45
28	5304482393		Block, Guide Rail, Rear, (2)				$ 19.85
29	5304482394		Gasket, Ring Nut			Immediately	$ 13.74
30	5304482395		Ring Nut				$ 14.81
31	5304482396		Hose, Preesure Switch, Pvc				$ 17.64
32	4056016522		Switch, Pressure   (Replaces: 5304482397)				$ 25.52
33	5304522734		Cross Piece, Front, Lower, W/insulation		Appelez-nous	-
36	5304482401		Box, Junction, Front		Appelez-nous	-
38	5304482402		O Ring, Mtg Screw, (2), For Toe Plate		Appelez-nous	-
39	5304482451		Screw, Rec Tap, St3.5 X 13, (6)				$ 4.94
40	5304482404		Toe Plate, Adjustable, Black				$ 123.17
41	5304519927		Clamp, Tube, In/outlet, Drain - Air Brk		Appelez-nous	-
42	5304522735		Valve, Inlet				$ 175.06
43	5304482407		Screw, Hex Hd Tpng, St5 X 12, (2)		Appelez-nous	-
45	5304509266		Foot, Leveling, (4)				$ 15.79
46	5304482409		Holder, Leveling Foot, (4)				$ 12.02
47	5304482410		Cross Piece, Back, Lower		Appelez-nous	-
48	5304482411		Bracket, Motor Support		Appelez-nous	-
50	5304482412		Cross Piece, Back, Upper		Appelez-nous	-
51	5304482413		Block, Bracing, (2)		Appelez-nous	-
53	5304482415		Gasket, Tub				$ 78.91
55	5304522736		Clamp, Hose, Otk157		Appelez-nous	-
57	5304522737		Tubing, Spray Arm, Upper				$ 48.20
58	5304482419		Clamp, Hose, 12.9 X 1.8				$ 11.29
59	5304482420		Cover, (2)		Appelez-nous	-
60	5304482421		Spray Arm Assembly, Upper				$ 26.57
62	5304482422		Nut, Spray Arm, Upper				$ 19.90
4A	5304482366		Upright Assembly, Rh				$ 146.74
NIA	5304485149		Fastener, Tub Gasket, Bottom, (2)				$ 6.35
