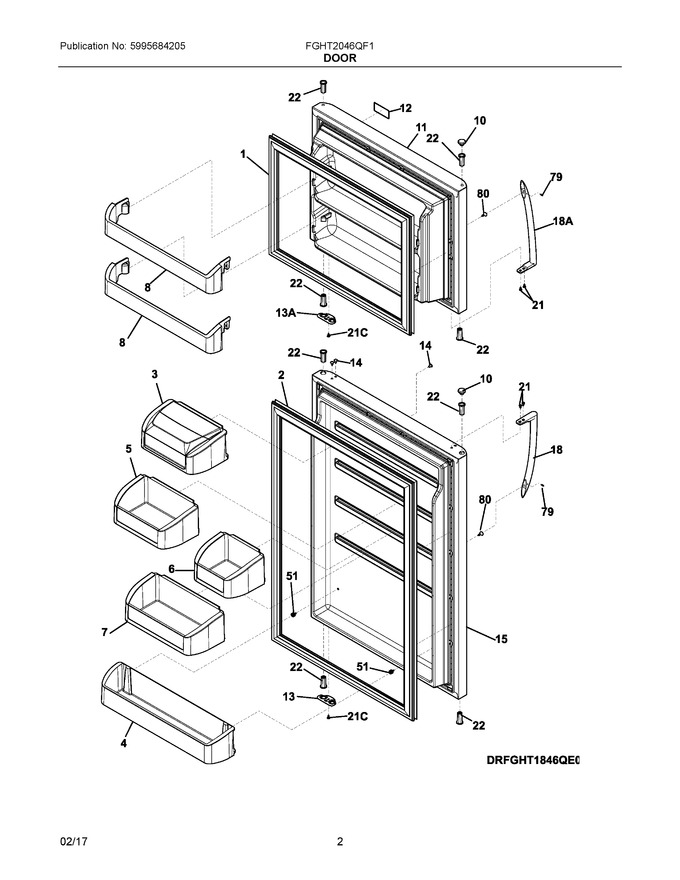

02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242193220		Gasket-frzr Door, Gray, Magnetic				$ 151.61
2	242193221		Gasket-refr Door, Gray, Magnetic				$ 125.16
3	242308502		Bin, Dairy, W/cover		Appelez-nous	-
4	5304498927		Bin, Door, Full Width, White, Refrigerator, Pseudo				$ 92.14
5	242308201		Bin, Door, 1/2 Width, Refrigerator, W/trim		Appelez-nous	-
6	242324201		Bin, Door, 1/3 Width, Refrigerator, W/trim		Appelez-nous	-
7	242324301		Bin, Door, 2/3 Width, Refrigerator, W/trim		Appelez-nous	-
8	5304498909		Bin, Door, Clear, Freezer, (2), Pseudo			Immediately	$ 63.29
10	240381307		Plug-button, Gray, Hinge Brg Hole, (2)			Immediately	$ 16.69
11	242178027		Door, Frzr, Stainless				$ 517.96
12	242015201		Label-nameplate			Immediately	$ 6.90
13	240312424		Door Stop, Gray, Ref   (Replaces: 240312420)				$ 14.41
14	240494007		Plug-button, Gray			Immediately	$ 15.92
15	242178123		Door, Refr, Stainless				$ 467.36
18	241977901		Handle-door, Stainless, Refr-rh/frzr-lh   (Replaces: 241977501)				$ 336.65
21	5304515677		Screw, Truss Hd Quad, #10-16 X .500, Zinc   (Replaces: 240383406)			Immediately	$ 19.23
22	5304507147		Bearing-hinge, Black   (Replaces: 240527102)			Immediately	$ 7.59
51	242039702		Screw, Shoulder, #10-16, (2)				$ 4.26
79	218755402		Screw-set, 10-32 X .500 In			Immediately	$ 33.00
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
13A	240312419		Door Stop, Gray, Frzr				$ 16.30
18A	241977901		Handle-door, Stainless, Refr-lh/frzr-rh   (Replaces: 241977502)				$ 336.65
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
NIA	241601001		Wrench, Allen		Appelez-nous	-
